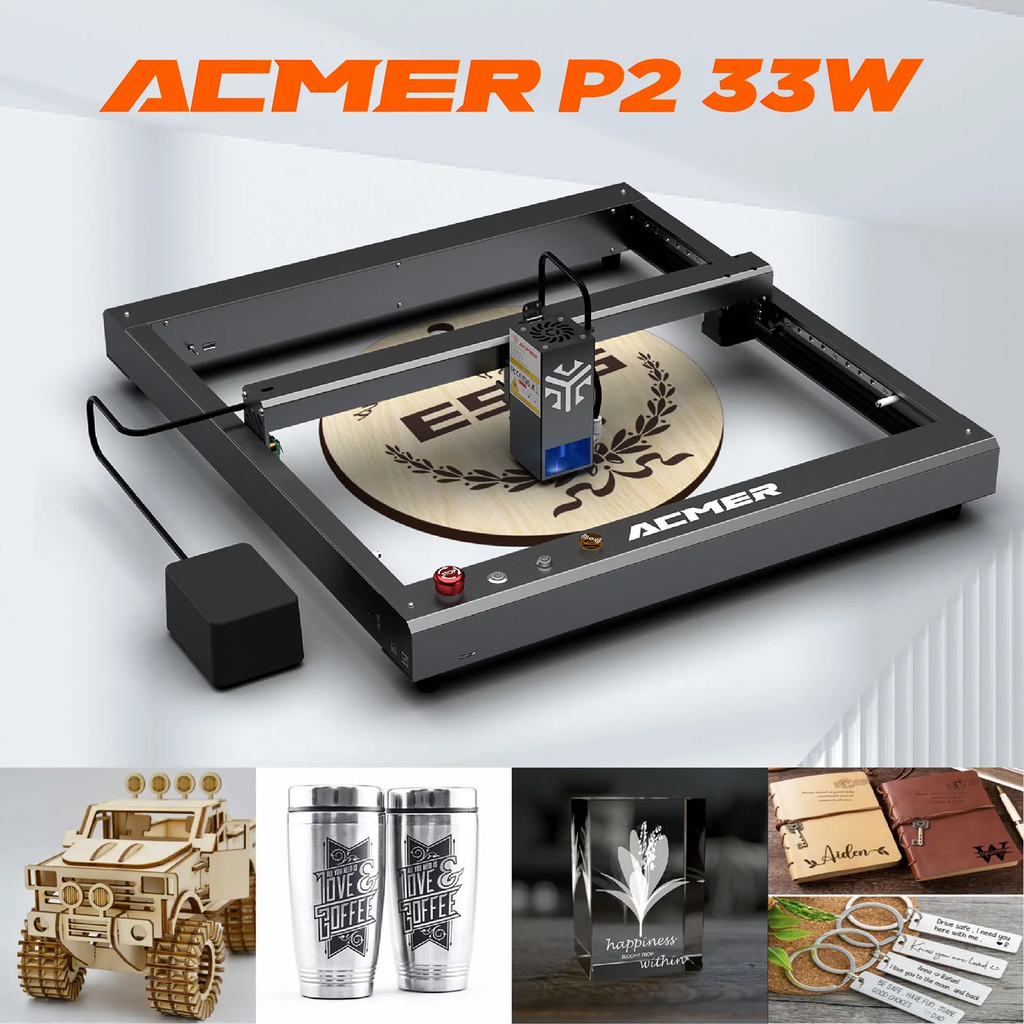

ACMER P2 33W Engraver with Automatic Air-assist System Superfast Speed Eye Protection Shield 420x400mm for Engraving and Carving Balsa Wood 304 Stainless Steel
The ACMER-P2 laser engraver is a powerful and versatile machine that is perfect for those who are looking for ultimate cutting speed and precision. With 33W laser power and ultra-fine laser focusing technology, this machine is capable of cutting through a variety of materials including acrylic, wood, stainless steel, glass, ceramics, cylinders, leather, and paper. The upgraded ESP32-bit motherboard ensures faster computing speed and supports various file formats, while the linear guide rail improves engraving accuracy. The large-area engraving range and automatic air assist system make this machine ideal for a wide range of engraving needs. The ACMER-P2 is also highly adaptable, with compatibility with a variety of sculpting software and multiple connection methods. The sturdy all-metal frame and simple installation design make this machine both stable and easy to set up. Comprehensive protection measures, including an emergency stop button, anti-tilt protection, flame detection, and power safety lock, ensure maximum safety for users and the machine. With its advanced features and comprehensive protection measures, the ACMER-P2 laser engraver is an excellent choice for anyone looking for a high-quality and reliable engraving machine.
Specification:
Model: ACMER-P2 33W
Machine size: 613x590x200mm
Light efficiency: 33000mw
Engraving size: 420x400mm
Light spot size: 0.08x0.1mm
Engraving speed: 30000mm/min
Electricity requirement: 24V 6A DC/24V 5A DC/24V 4A DC
Main board: ESP32nd place
Engraving method: USB/APP/Online/TF
Software support system: Mac, Windows, Linux
Ultra-light wavelength: 445±5nm
Engraving materials: wood, plastic, paper, leather, bamboo, stainless steel, glass, etc.
Engraving method: image engraving/character engraving, sketch engraving/convex engraving
Document format: SVG, NC, BMP, JPG, PNG, GCODE, etc.
Supporting Softwares: LaserGRBL, Lightburn
Supporting languages: English, Deku, Idori, Legal, Chinese
Safety protection: emergency stop, anti-tilt device, power safety lock, flame test
Package size: 710x305x245mm/27.9x12x9.6in
Package Weight: 8.3kg/18.2lb
ACMER P2 33W Engraver with Automatic Air-assist System Superfast Speed Eye Protection Shield 420x400mm for Engraving and Carving Balsa Wood 304 Stainless Steel
- ♦ 33W Laser Power - Using the latest 6x6W laser coupling technology, ultra-fine laser focusing 0.08mm, minimum engraving precision 0.01mm. Perfect for pursuing ultimate cutting speed, which is able to cut 12mm plywood and 30 balsa wood by one time. Suitable for various materials including acrylic, wood, stainless steel, glass, ceramics, cylinders, leather, paper, etc.
- ♦ Upgraded ESP32-bit Motherboard - The P2 laser engraver series' motherboard uses ESP32-bit chips, with faster computing speed that up to 30000mm/min. Increase the cutting depth by 25%. Support various file formats such as SVG, NC, BMP, JPG, PNG, GCODE, etc.
- ♦ Excellent Engraving Performance - Linear guide rail to drive, improve the engraving accuracy, especially the accuracy of walking arc. 420x400mm large-area engraving range can meet your various engraving needs. Equipped with automatic air assist system, greatly improve the cutting speed and precision, while avoiding the material yellow burning.
- ♦ Extensive software adaptability & Multiple connection methods - ACMER-P2 series machines can be compatible with a variety of mature sculpting software and APP control, such as LaserGRBL (free), LightBurn (paid), LaserGRBL support Windows XP/7/8/10/11, LightBurn support Mac OS and windows. And you can transfer data via Wi-Fi, USB cable, APP and TF card.
- ♦ Sturdy structure & simple installation design - The all-metal frame makes the machine more stable and durable, and improves the engraving precision. The whole engraving machine adopts modular design and can be successfully installed in 10-15 minutes in just 4 simple steps.
- ♦ Comprehensive Protection Measures - Equipped with an emergency stop button to stop the machine at any time; There are anti tilt protection function, flame detection function, power safety lock. And filter glass shields protect your eyes and filter out 97% UV rays. To ensure the maximum possible safety of users and machine.
