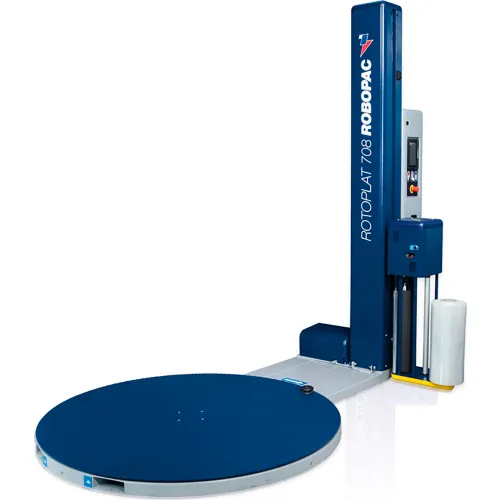

Robopac Rotoplat 708 Semi-Automatic Turntable Stretch Wrapper, 86"H x 65" Dia., 4400 lb. Capacity
Model #: WBB3136442
MPN #: 9020302497
The Rotoplat 708 with CUBE Technology is the most innovative semi-automatic stretch wrapper in the market. It is also the easiest to use, thanks to its intuitive seven (7) inch color touchscreen.
Features:
- Save 30-55% on film with Cube Technology
- R-Connect now included as a standard feature (includes 36-month initial cellular data plan)
- Save 6 unique load configurations
- 65" turntable with 28 support bearings
- 4400 lbs. weight capacity
- 110" standard wrap height
- R-CONNECT EQUIPPED: Developed to provide usage and performance data via the cloud. Utilization drastically reduces downtime by giving you informational transparency, allowing you to connect with your machines remotely to investigate alarms, adjust parameters, & respond promptly
- COLOR TOUCH SCREEN: The high performance 7-inch color touch screen with icons specifically designed and created by Robopac has led to the implementation of the MULTILEVEL CONTROL function
- PVS CARRIAGE: Powered stretch system controlled by two motors. Stretch ratio adjustable from panel board from 50-400%. Force to the load controlled by patented electronic device and adjustable from panel board
- STAINLESS STEEL VERSION AVAILABLE: Ideal for processing, wet or cold applications., our stainless steel Rotoplat 708 stretch wrapper is designed for industries requiring high hygiene like meat, poultry, fish, dairy, beverage and wherever high food safety is essential
- Safety Features: Anti-fall device on carriage, Pressure activated safety stop on carriage, CE Compliant, UL, CUL
Certified Installation available through the manufacturer. Please contact for details for what is included and pricing.
Weights & Dimensions
Width | 65 in |
Height | 86 in |
Weight Capacity | 4400 lbs |
Weight | 2000 lbs |
Turntable Height | 86 in |
Turntable Diameter | 65 in |
Max Roll Width | 30 in |
Max Wrap Height | 86 in |
Max Load Diameter | 65 in |
Min Roll Width | 20 in |
Product Details
Assembly Required | Yes |
Operating Speed | 40 LPH |
Phase | 1 |
Manufacturers Part Number | 9020302497 |
Mast Vertical Movement | Semi-Automatic |
Programmable | Yes |
Speed | 5 - 12 rpm |
Brand | Robopac |
Type | Semi Automatic Stretch Wrapper |
Color | Blue |
Amperage | 20 A |
Series | Rotoplat 708 |
Control | Multi Level |
Voltage | 115 V |
Package Quantity | 1 |
Description | Rotoplat Semi-Automatic Stretch Wrapper |
