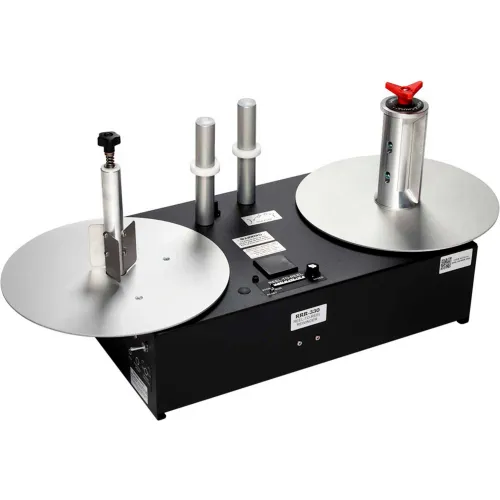

Labelmate USA Reel To Reel Rewinder for Rolls Up To 6" Width & 13" Dia. & 3" Core, 100-240-24V
Model #: WBB1856989
MPN #: RRR-330
The reel-to-reel rewind station is designed for all label types for 3" diameter cores, up to 6" wide material and up to 13" outer diameter roll. These self-contained unwind/rewind RRR's (reel-to-reel rewinders) are a fast way to change rewind direction of material (wind-in/wind-out), change core sizes and visually inspect labels. With various core sizes, roll diameters and speed adjustment, this unit present the most versatile way to get the job done.
With a 3-year parts and labor limited warranty, all Labelmate USA reel-to-reel rewinders and unwinders are designed for worry-free 24/7 operation. It usually ships within 3-5 days.
Weights & Dimensions
| Length | 32 in |
| Width | 13 in |
| Depth | 12-1/2 in |
| Weight | 23 lbs |
| Roll Core | 3 in |
| Max Material Width | 6 in |
| Min Material Width | 1/2 in |
| Feed Rate | 114 in |
| Roll Diameter | 13 in |
Product Details
| Type | Rewinder |
| Color | Black |
| Roll Capacity | 1 |
| Feed Type | Automatic |
| Voltage | 24 V |
| Material | Aluminum, Plastic, Steel |
| Description | Reel-To-Reel Rewinder/Unwinder Station |
| Manufacturers Part Number | RRR-330 |
| Core Holders | Yes |
| Label Type | All Labels |
| Brand | Labelmate USA |
