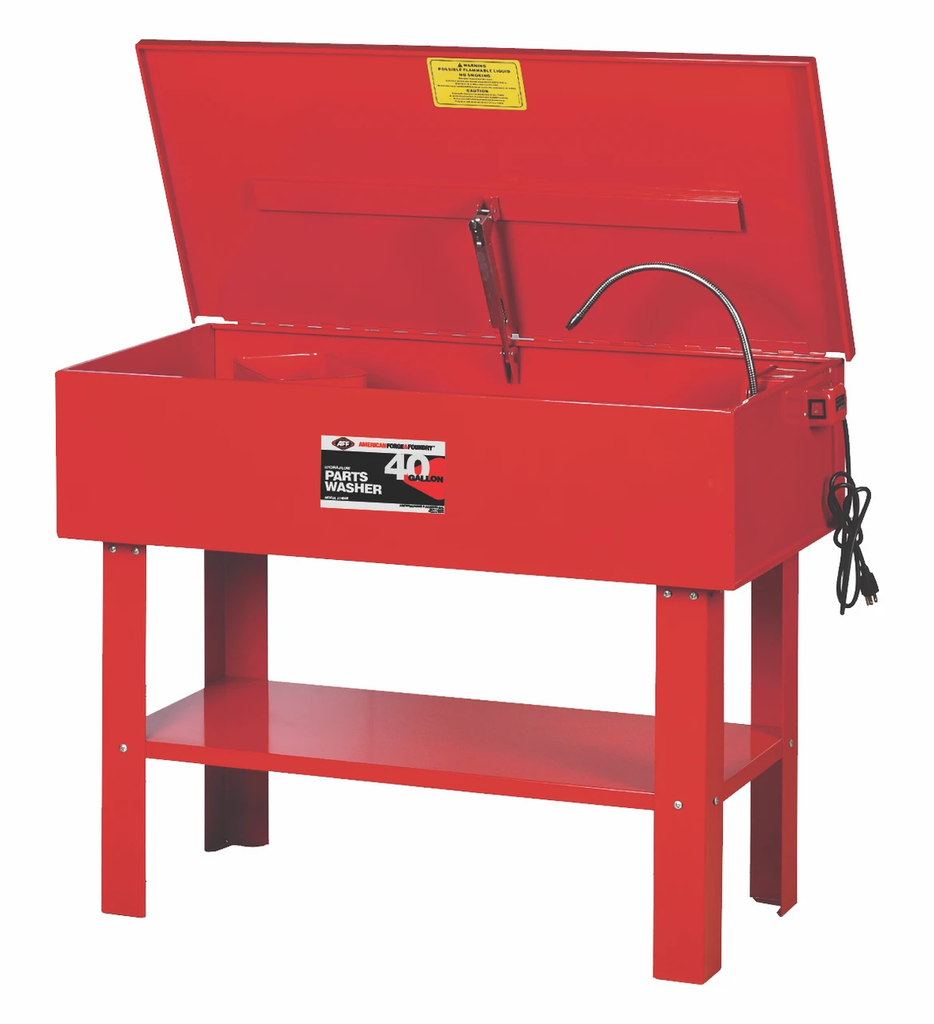

American Forge & Foundry 40-Gal Industrial-Duty Parts Washer (31400B)
MPN:
31400B
SKU:
DS-AFF-31400B
UPC:
874015000191
The American Forge & Foundry 40-Gal Industrial-Duty Parts Washer (31400B) provides a reliable and efficient solution for cleaning automotive and industrial components. Designed for demanding shop environments, this unit features a generous 40-gallon reservoir with a practical 22-gallon working capacity, ensuring you have ample space and solvent for a variety of cleaning tasks. Its robust 50 GPH (Gallons Per Hour) pump delivers a consistent flow of cleaning solution, allowing for thorough removal of grime, grease, and contaminants from parts. Built with safety in mind, the 31400B includes a self-closing fusible linked fire cover that automatically activates in an emergency, along with a GFCI plug for electrical safety. The entire unit is UL Listed, affirming its compliance with rigorous safety standards. Supplied with a removable work shelf and parts basket, this washer makes it easy to organize and clean both large and small items. This model is engineered to operate exclusively with water-based (aqueous) cleaning solutions, making it an environmentally conscious choice for your workshop.
KEY FEATURES AND BENEFITS:
- High Capacity: Features a 40-gallon reservoir and a 22-gallon working capacity, suitable for a wide range of parts.
- Efficient Cleaning: Equipped with a 50 GPH pump for strong, consistent solvent flow.
- Enhanced Safety: Includes a self-closing fusible linked fire cover and a GFCI plug for electrical protection.
- UL Listed: The complete unit is UL Listed, ensuring it meets recognized safety standards.
- Convenient Accessories: Comes with a removable work shelf and a parts basket for organized cleaning.
- Water-Based Solvent Compatibility: Designed exclusively for use with water-based cleaning solutions, promoting a safer work environment.
SPECIFICATIONS:
- Amperes: 0.5A
- Standards: UL Listed (complete unit)
- Length: 45 inches
- Min. Height: 35.6 inches
- Voltage: 115 V / 60 Hz
- Working Volume: 22 gallons
- Width: 21.25 inches
- Ship Weight: 107 lbs.
HOW TO USE:
- Placement: Position the parts washer on a level, stable surface in a well-ventilated area, away from ignition sources.
- Fill with Solvent: Carefully fill the reservoir with a suitable water-based (aqueous) cleaning solution up to the recommended fill line, which aligns with the 22-gallon working capacity. Do not use flammable or petroleum-based solvents.
- Connect Power: Plug the unit's GFCI cord into a properly grounded 115V / 60 Hz electrical outlet. Ensure the GFCI plug is functioning correctly.
- Activate Pump: Turn on the pump using the designated switch. The cleaning solution will begin to flow through the flexible nozzle.
- Clean Parts: Place parts on the removable work shelf or inside the parts basket. Use the directed flow from the nozzle to wash away grime. For stubborn dirt, use an appropriate cleaning brush. Allow parts to soak in the basket if needed.
- Drain and Dry: Once clean, remove parts and allow excess solution to drain back into the reservoir. Air dry or wipe parts clean before reassembly.
- Power Off: When finished, turn off the pump and unplug the unit from the power source.
- Maintenance: Regularly check and replace the cleaning solution as it becomes contaminated. Clean out any sludge or debris from the bottom of the reservoir periodically to maintain optimal performance.
BENEFITS OF USING AMERICAN FORGE & FOUNDRY 40-GAL INDUSTRIAL-DUTY PARTS WASHER (31400B):
- Efficient Cleaning Performance: The powerful 50 GPH pump combined with ample working capacity allows for quick and effective removal of contaminants from a variety of parts, saving time and effort.
- Enhanced Workshop Safety: Integrated features like the self-closing fusible linked fire cover and GFCI plug provide critical layers of protection, reducing the risk of accidents in the workplace.
- Organized Workspace: The included removable work shelf and parts basket help keep components organized during the cleaning process, preventing small parts from getting lost and improving workflow.
- Compliance with Safety Standards: Being a UL Listed unit means it has been independently tested and meets specific safety requirements, providing assurance of its quality and safe operation.
- Cost-Effective Operation: Designed for water-based cleaners, which are generally less expensive and safer to handle than petroleum-based alternatives, contributing to lower operating costs and a healthier environment.
FEATURES:
- Integrated 40-gallon liquid reservoir
- Practical 22-gallon cleaning capacity
- Robust steel construction for industrial use
- Baked enamel finish resists corrosion
- Integrated GFCI electrical protection
- Flexible nozzle for directed solvent flow
- Designed exclusively for water-based solvents
- Meets UL safety compliance standards
- Compact footprint for shop integration
- Easy-to-clean interior surfaces
- Includes a 5-foot power cord
