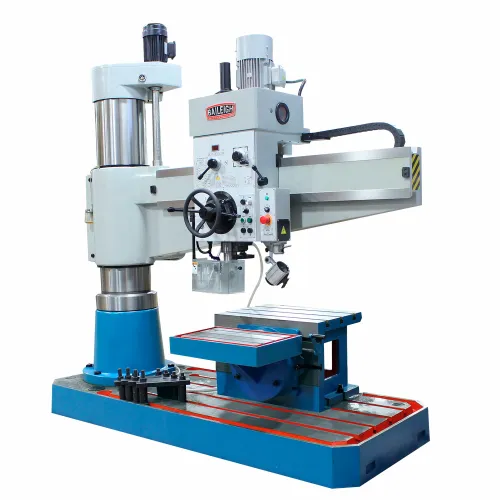

Baileigh Industrial® RD-1600H-VS Hydraulic Radial Drill Press, 5-1/4 HP, 3-Phase, 220V
Model #: WBB3169455
MPN #: BA9-1019843
RD-1600H-VS Variable Speed Radial Drill with Quick Change Tool Set and Rotary Axis is a step above other conventional radial drills. It is suitable for medium and small parts in drilling, spot facing, counter-boring and taping etc. It is really an idea machine suitable for single work piece machining and batch production in the machining workshop, maintenance workshop and tool production workshop.
Features:
- 220V 3-phase
- 38 to 2000 rpm
- Heavy duty, oversized
- MT5 spindle
- Power down feed
- Box shape worktable
- Inverter driven, variable speed
- Integrated coolant system with easy to reach switch
- Hydraulic clamping for column, arm, and spindle box
- Distance Spindle to Column (Min-Max) - 13-3/4" - 63"
| Length | 109 |
| Width | 45 in |
| Height | 102 in |
| Weight | 8500 lbs |
| Table Size (L x W) | 18-11/16 x 16-3/4 in |
| Column Diameter | 63 in |
| Drilling Capacity | 2 in |
| Base Dimensions | 109 x 45 in |
| Distance Spindle To Column | 63 in |
Product Details
| Type | Hydraulic Radial Drill Press |
| Drilling Capacity Cast Iron | 2 |
| Number of Spindle Speeds | Variable |
| Drilling Capacity Mild Steel | 2 |
| Style | Radial Drill Press |
| Motor Voltage | 220 V |
| Range of Spindle Speeds | 38 - 2,000 rpm |
| Phase | 3 |
| Description | Hydraulic Variable Speed Radial Drill |
| Manufacturers Part Number | BA9-1019843 |
| Motor Horsepower | 5-1/4 HP |
| Spindle Taper | MT-5 |
| Brand | Baileigh Industrial |
