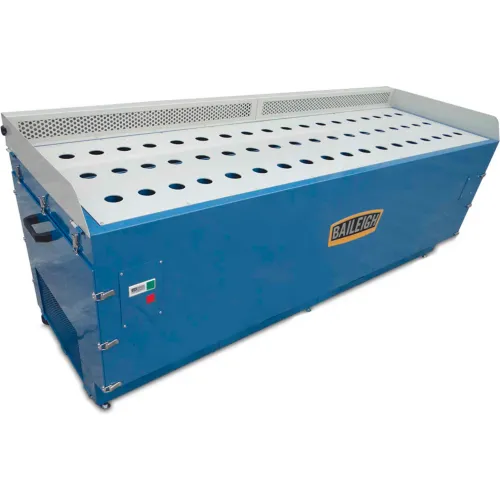

Baileigh Industrial Downdraft Table, .5 HP, Single Phase, 110V, DDTM-5922

  • Sale
  • $6,406.00


Baileigh Industrial Downdraft Table, .5 HP, Single Phase, 110V, DDTM-5922

Model #: WBB3055758

MPN #: BA9-1008627

Whether it is before or after, often at welding workstations grinding on the work piece has to be done. But this is a messy proposition for most shops. The DDTM-5922 downdraft grinding table from Baileigh Industrial can help. This easy to use down draft table takes all the little partials that float around the shop and pull them straight down into a contained unit and also help to clean the air.What is unique about the DDTM-5922 metal working downdraft table is that it is a self-contained unit and there is no need to hook it up to external extraction systems. It operates on 110 volt power and has two .5hp motors that produce 1790 CFM per motor. That is a lot of sucking power to keep the area clean. The filters are also fire resistant on this grinding station making it very safe as well

  • 59" x 22" downdraft table
  • 3 mm thick stainless steelwork surface
  • Perfect for grinding and sanding
  • Dual motors 1790 CFM per motor
  • Fire resistant air filters
  • Easy clean out chip compartments
  • 110V

Contact a representative today to find out more about the DDTM-5922

Width 65.75 in
Height 36 in
Weight Capacity 440 lbs
Filter Size (W x L x D) 16 x 20 x 1 in

Product Details

CFM 1790 Per Motor CFM
Filter Material 250 Micron Fire Resistant
Motor Voltage 110 V
Country of Origin Import
Voltage 110 V
Phase 1
Description Metal Downdraft Table
Features 250 Micron / Fireproof
Manufacturers Part Number BA9-1008627
Motor Horsepower 0.5 HP
Brand Baileigh Industrial
