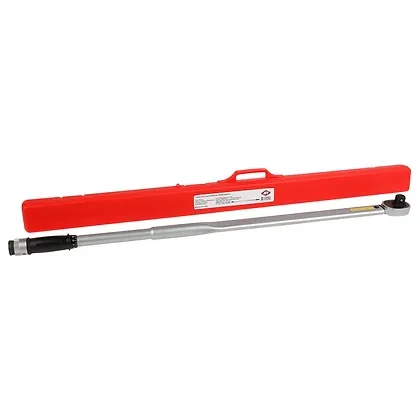

American Forge & Foundry 1" Drive Ratcheting Torque Wrench (41055)

American Forge & Foundry 1" Drive Ratcheting Torque Wrench (41055)

  • Sale
  • $1,019.00

American Forge & Foundry 1" Drive Ratcheting Torque Wrench (41055)

MPN:
41055
SKU:
DS-AFF-41055
UPC:
874015005950

The American Forge & Foundry 1" Drive Ratcheting Torque Wrench (41055) is a professional-grade tool meticulously crafted to meet the demanding requirements of automotive, heavy-duty truck, and industrial applications. Designed for superior precision and longevity, this torque wrench ensures that fasteners are tightened to exact specifications, crucial for operational safety and equipment integrity. Made with high-quality materials and rigorous workmanship, it stands as a testament to AFF’s commitment to providing reliable and high-performance service equipment.

KEY FEATURES AND BENEFITS:

  • Accurate Torque Application: Provides precise torque within a 100-700 ft-lb (135-949 Nm) range, ensuring fasteners are tightened to specification.
  • Clear Feedback System: Delivers a distinct perceptible jolt and audible click when the desired torque setting is achieved, eliminating guesswork.
  • Secure Setting Mechanism: A robust locking collar prevents accidental changes to the set torque value during use, maintaining accuracy and efficiency.
  • User Comfort: Features a comfortable, non-slip, oil-resistant grip handle designed for extended use without causing fatigue.
  • Enhanced Tool Longevity: A rubber seal between the ratchet head and tube keeps internal lubrication clean and contaminants out, preserving accuracy and extending the tool's lifespan.
  • Certified Performance: Comes with a Certificate of Calibration, guaranteeing its adherence to stated accuracy requirements.

SPECIFICATIONS:

  • Accuracy: +/- 4%
  • Standards Conformance: ANSI, ISO, BSEN 26789-1994, U.S. Government Federal Specification GGG-W-00686C
  • Duty Level: Heavy Duty
  • Grip Style: Ergonomic
  • Material: Chrome Vanadium
  • Measurement Standard: SAE/Metric
  • Number of Geared Teeth: 24
  • Output Drive: 1"
  • Overall Length: 48"
  • Selling Configuration: Open Stock
  • Style: Micrometer, Reversible
  • Swing Arc: 15°
  • Torque Range: 100-700 ft-lbs (135-949 Nm)
  • Head Thickness: 1.04”
  • Head Width: 2.85”
  • Weight: 14.21 lbs
  • Included in Purchase: Protective blow mold case, Certificate of Calibration

HOW TO USE:

  • Select the Right Socket: Choose the correct 1" drive socket for the fastener you are working with.
  • Unlock and Adjust Torque: Turn the handle counter-clockwise to unlock the setting mechanism. Rotate the handle or the main body of the wrench to align the desired torque value on the primary (ft-lbs) or secondary (Nm) scale.
  • Lock the Setting: Once the desired torque is set, turn the handle clockwise to securely lock the setting in place. This prevents accidental changes during operation.
  • Attach to Fastener: Place the socket onto the fastener, ensuring a secure fit.
  • Apply Force: Grip the handle firmly and apply steady, increasing force in a clockwise direction.
  • Listen and Feel for Indication: Continue applying force until you hear an audible "click" and feel a perceptible "jolt" from the wrench. This indicates that the preset torque has been reached. Do not continue to apply force after the click/jolt.
  • Reset (if needed): For subsequent fasteners, the wrench is ready for immediate use if the same torque setting is required. If a different torque is needed, repeat steps 2 and 3.

BENEFITS OF USING AMERICAN FORGE & FOUNDRY 1" DRIVE RATCHETING TORQUE WRENCH (41055):

  • Ensures proper bolt tension, critical for preventing component failure and enhancing safety.
  • Extends the lifespan of equipment by avoiding over-tightening which can strip threads or damage parts.
  • Reduces the risk of under-tightening, which can lead to loosening and potential equipment malfunction.
  • Improves operational efficiency by providing quick and accurate torque application.
  • Minimizes user fatigue through its ergonomic design and clear feedback mechanism.
  • Provides confidence in meeting regulatory and manufacturer specifications due to its calibrated accuracy.
  • A valuable investment for any professional shop due to its robustness and long-term reliability.

FEATURES:

  • Micrometer-style torque adjustment for precise setting.
  • Reversible ratcheting head allows for both tightening and loosening applications.
  • 24-tooth gear mechanism for fine adjustments and operation in tighter spaces.
  • Designed with an ergonomic grip for comfortable handling during extended tasks.
  • Constructed from high-strength Chrome Vanadium steel for tool durability.
  • Equipped with a rubber seal to protect internal components from dirt and moisture.
  • Clearly marked dual scales (ft-lbs and Nm) for easy reading.
  • Positive locking ring ensures the set torque value remains constant during use.
  • Provides tactile and auditory feedback upon reaching the set torque.
  • Comes with a custom-fit blow mold case for convenient storage and transport.
