VORA1150-X017T-Solid State Relays - PCB Mount 1500V, 1 FORM A SS RELAY
| Vishay | ||
| Product Category: | Solid State Relays - PCB Mount | |
| RoHS: | ||
| Reel | ||
| Cut Tape | ||
| PCB Mount | ||
| 50 mA | ||
| 1.5 kVAC | ||
| SPST (1 Form A) | ||
| SMD-8 | ||
| MOSFET | ||
| - 40 C | ||
| + 125 C | ||
| 9.75 mm (0.384 in) | ||
| 6.6 mm (0.26 in) | ||
| 3.55 mm (0.14 in) | ||
| Brand: | Vishay | |
| Country of Assembly: | Not Available | |
| Country of Diffusion: | Not Available | |
| Country of Origin: | MY | |
| Isolation Voltage: | 5.3 kVAC | |
| Moisture Sensitive: | Yes | |
| On Resistance - Max: | 200 Ohms | |
| Pd - Power Dissipation: | 550 mW | |
| Product: | Solid State Relays | |
| Product Type: | SSR - Solid State Relays | |
| 2000 | ||
| Subcategory: | Relays | |
| Termination Style: | Gull Wing Lead |
- E9) GESI CONFLICT MINERALS REPORTING TEMPLATE(2023/05/26)
- E14) COC-ROHS 2 (2015/863/EU) (2023/01/01)
- E12) COC-ROHS 2 (2011/65/EU) (2017/07/12)

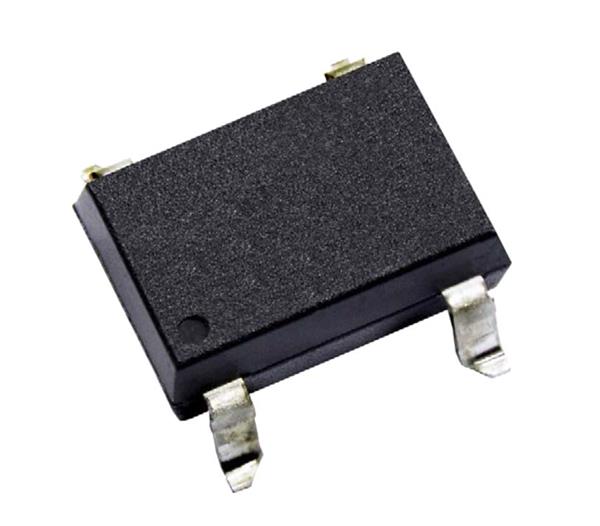

CNY Series High Isolation Voltage Optocouplers
Vishay Semiconductors CNY Series High Isolation Voltage Optocouplers are category IV high voltage isolation optocouplers available in a surface mount package. The high isolation voltage SMD version optocouplers consist of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 4 pin plastic package. The single components are mounted opposite one another, providing a distance between input and output for high safety requirements of >3mm. Vishay Semiconductors CNY Series High Isolation Voltage Optocouplers are ideal for such applications as solar equipment, smart meters, and smart grids.
