Bipolar Transistors - BJT SOT323 45V .5A PNP GP TRANS
BC807-40W,115
Manufacturer:
Nexperia
Mfr Part:
BC807-40W,115
Datasheet
| Description | Product Attribute |
Similar
|
|---|---|---|
| Manufacturer | Nexperia | |
| Product Category | bjt | |
| Technology | Si | |
| Mounting Style | SMD/SMT | |

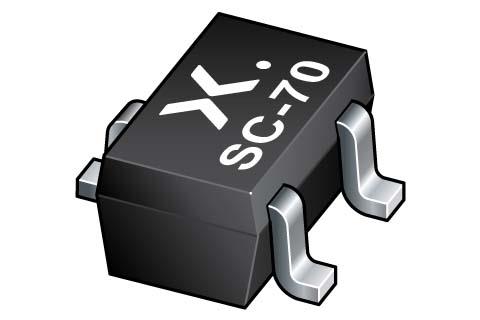

| Package / Case | SOT-323-3 | |
| Transistor Polarity | PNP | |
| Configuration | Single | |
| Maximum DC Collector Current | 500 mA | |
| Collector- Emitter Voltage VCEO Max | 45 V | |
| Collector- Base Voltage VCBO | 50 V | |
| Emitter- Base Voltage VEBO | 5 V | |
| Collector-Emitter Saturation Voltage | 700 mV | |
| Maximum DC Collector Current | 500 mA | |
| Pd - Power Dissipation | 200 mW | |
| Gain Bandwidth Product fT | 80 MHz | |
| Minimum Operating Temperature | - 65 C | |
| Maximum Operating Temperature | + 150 C | |
| Packaging | Reel | |
| DC Current Gain hFE Max | 250 at 100 mA, 1 V | |
| Product Type | BJTs - Bipolar Transistors | |
| Subcategory | Transistors | |
| Part # Aliases | 934024260115 |
Export and Environmental Classification
| Attribute | Description |
|---|---|
| Country of Origin | Malaysia |
| ECCN | EAR99 |
| HTS | 8541210075 |
| TARIC | 8541210000 |
| RoHS Compliant |
Yes
RoHS Compliant
|
| RoHS Exemption Number | N/A |
| Lead(PB) in Terminals |
No
Lead Free
|
| REACH SVHC | No |
| REACH Substance Name | N/A |
Documents
Datasheet
| Nexperia | ||
| Product Category: | Bipolar Transistors - BJT | |
| RoHS: | ||
| Si | ||
| SMD/SMT | ||
| SOT-323-3 | ||
| PNP | ||
| Single | ||
| 500 mA | ||
| 45 V | ||
| 50 V | ||
| 5 V | ||
| 700 mV | ||
| 200 mW | ||
| 80 MHz | ||
| - 65 C | ||
| + 150 C | ||
| Reel | ||
| Cut Tape | ||
| MouseReel | ||
| Brand: | Nexperia | |
| Country of Assembly: | Not Available | |
| Country of Diffusion: | Not Available | |
| Country of Origin: | MY | |
| DC Current Gain hFE Max: | 250 at 100 mA, 1 V | |
| Product Type: | BJTs - Bipolar Transistors | |
| 3000 | ||
| Subcategory: | Transistors | |
| Part # Aliases: | 934024260115 | |
| Unit Weight: | 0.000176 oz |
