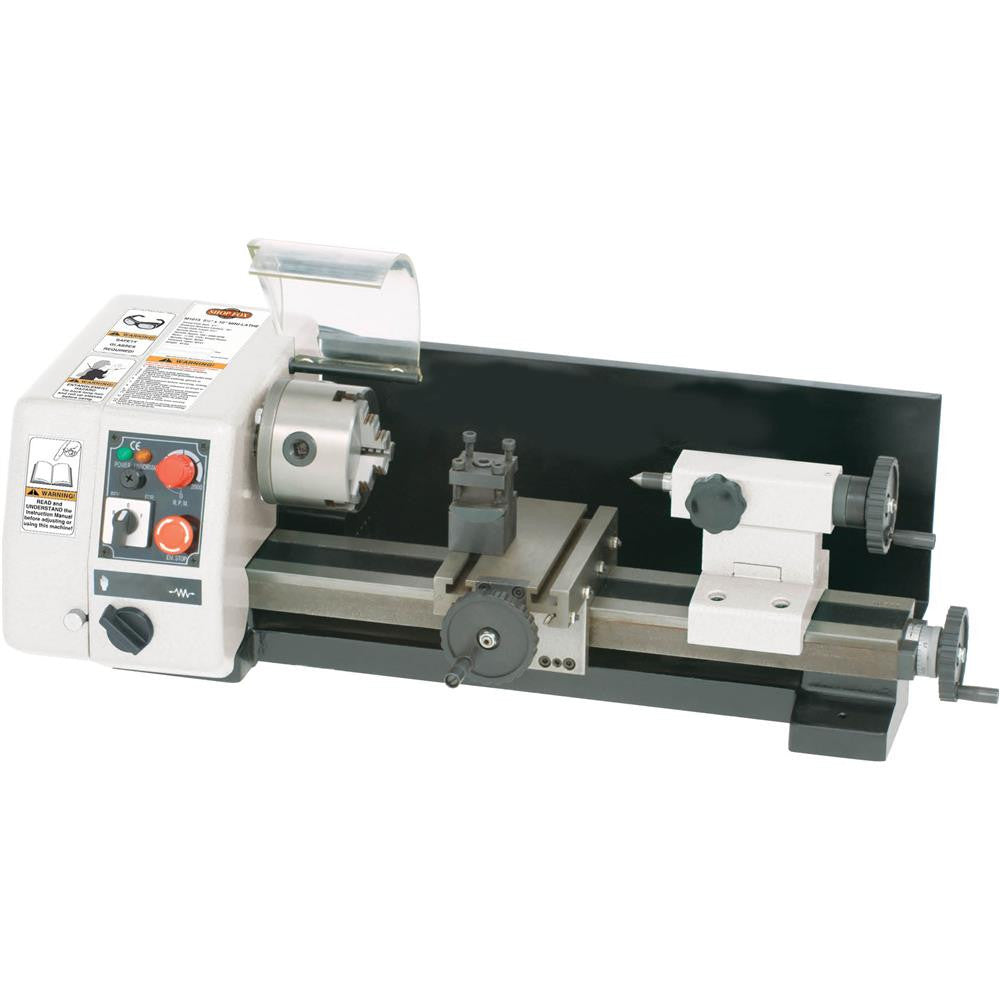

Shop Fox 6 x 10 Inch Mini Metal Lathe with Variable Speed and 3-Jaw Chuck (M1015)

MPN:

M1015

SKU:

-DS-WDS-M1015  |

UPC:

754001510159

Shop Fox 6 x 10 Inch Mini Metal Lathe with Variable Speed and 3-Jaw Chuck (M1015) is ideal for mini machine shop enthusiasts. This compact lathe is perfect for toolmakers, gun hobbyists, and model builders who need a durable and well-designed machine that fits in small spaces.

The Shop Fox M1015 mini lathe features a variable speed range of 100-2000 RPM, allowing for precise control over your projects. Its 1/5 HP motor and robust build ensure reliable performance. This lathe comes with a 3" three-jaw chuck and a range of optional accessories for various setups.

• Specifications and Dimensions
  • Motor: 1/5 HP, 110V, single-phase, 1.2A
  • Swing over bed: 6"
  • Distance between centers: 10"
  • Swing over cross slide: 4-1/8"
  • Swing over saddle: 5"
  • Cross slide travel: 2-3/8"
  • Carriage travel: 10"
  • Spindle speeds: variable speed, 100-2000 RPM
  • Spindle bore: 0.375"
  • Spindle taper: MT#2
  • Bed width: 3-1/4"
  • Tailstock barrel taper: MT#1
  • Tailstock barrel travel: 2"
  • Leadscrew: 16 TPI
  • Thread range (inch): 5 @ 16-24 TPI
  • Max. tool size: 3/8"
  • Overall size: 27-3/4"L x 11-1/2"W x 12"H
  • Approximate shipping weight: 78 lbs

• Key Features and Benefits
  • Variable speed range from 100 to 2000 RPM for precise control
  • Compact size ideal for small workshops
  • Includes a 3" three-jaw chuck with internal and external jaws
  • Perfect for producing small precision parts
  • Comes with a 2-year warranty covering parts
