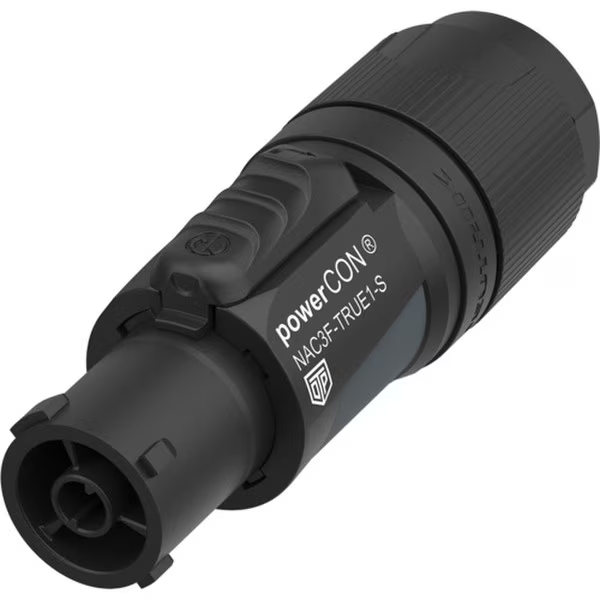

AC Power Plugs & Receptacles Cable end - powerCON TRUE1 - female - power out - with cable gland for IP65, IP66 and IP67, UV rated, corrosion resistant, for cable 8-13 mm (SJOOW 14/3 and SJOOW 12/3)
NAC3F-TRUE1-CG
Datasheet:
| Neutrik | ||
| Product Category: | AC Power Plugs & Receptacles | |
| Connector | ||
| 20 A | ||
| 250 VAC | ||
| Straight | ||
| Cable | ||
| 1 Port | ||
| IP65, IP66, IP67 | ||
| Brand: | Neutrik | |
| Contact Material: | Copper | |
| Country of Assembly: | Not Available | |
| Country of Diffusion: | Not Available | |
| Country of Origin: | HU | |
| Flammability Rating: | UL 94 V-0 | |
| Housing Material: | Polyamide (PA) | |
| Maximum Operating Temperature: | + 80 C | |
| Minimum Operating Temperature: | - 30 C | |
| Product Type: | AC Power Plugs & Receptacles | |
| 50 | ||
| Subcategory: | Power Connectors | |
| Wire Gauge: | 12 AWG |
