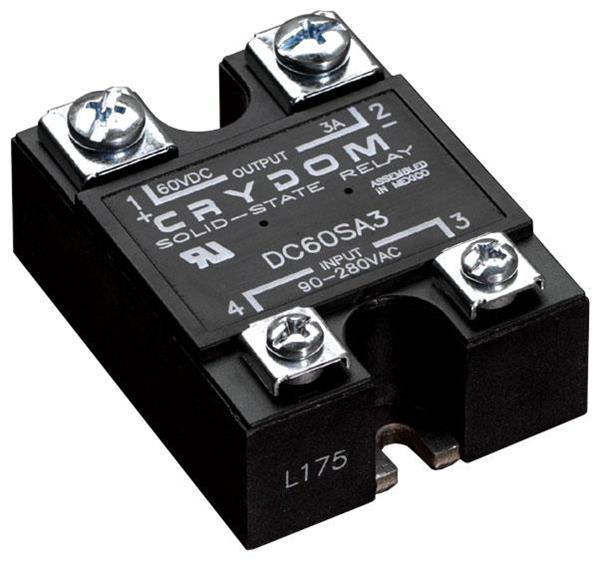

Solid State Relays - SSRs 60VDC 3 AMP DC INPUT
DC60S3
Manufacturer:
Crydom
Mfr Part:
DC60S3
Datasheet
| Manufacturer | Sensata | |
| Product | Solid State Relays | |
| Type | Isolated | |
| Mounting Style | Panel Mount | |
| Load Current Rating | 3 A | |
| Load Voltage Rating | 3 VDC to 48 VDC | |
| Relay Contact Form | 1 Form A (SPST-NO) | |
| Output Type | Bi-Polar Transistor | |
| Control Voltage Range | 3.5 VDC to 32 VDC | |
| Input Current | 2.2 mA to 25 mA | |
| Minimum Operating Temperature | - 30 C | |
| Maximum Operating Temperature | + 80 C | |
| IP Rating | IP00 | |
| Series | DC60S/SA | |
| Length | 57.3 mm | |
| Width | 44.5 mm | |
| Height | 22.6 mm | |
| Packaging | Each | |
| Input to Output Isolation Method | Optocoupler | |
| Package / Case | Hockey Puck | |
| Product Type | SSR - Solid State Relays | |
| Subcategory | Relays | |
| Termination Style | Screw |
Export and Environmental Classification
| Attribute | Description |
|---|---|
| Country of Origin | Mexico |
| ECCN | EAR99 |
| HTS | 8541498000 |
| TARIC | 8536490099 |
| RoHS Compliant |
RoHS Per Exemption
RoHS Per Exemption
|
| RoHS Exemption Number | N/A |
| Lead(PB) in Terminals | |
| REACH SVHC | Yes |
| REACH Substance Name | Lead (7439-92-1) |
