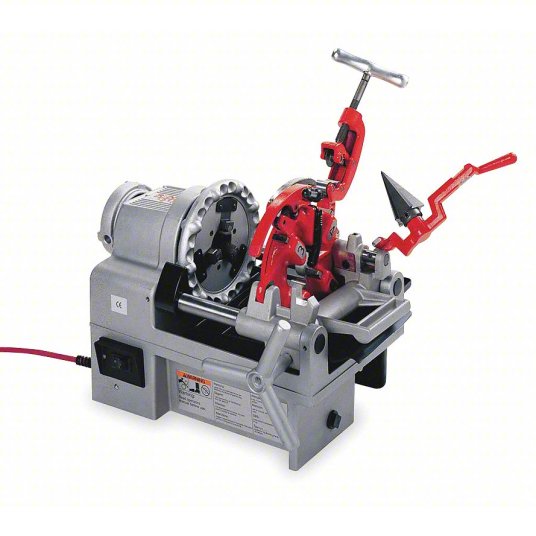

RIDGID Pipe Threading Machine: 1215, For 1/4 in to 1 1/2 in Pipe, 1/2 hp, Manual Chuck, 1 Speed, Std
Stationary pipe threaders offer features that speed production and ease operation compared to portable machines. They sit on a benchtop, stand, or other flat surface or may be placed on a compatible cart for repositioning or moving within a shop. These corded machines allow long run times for repetitive threading tasks, maintain full power during operation, and have no batteries to recharge.
Item 1XDZ9
Mfr. Model 61142
Brand
RIDGID
RIDGID
Max. Pipe Dia.
1-1/2 in
1-1/2 in
Min. Pipe Dia.
1/4 in
1/4 in
Phase
Single-Phase
Single-Phase
Horsepower
1/2 hp
1/2 hp
Chuck Type
Manual
Manual
Includes
Cutter Assembly; Nu-Clear Oil; Quick-Open Right Hand NPT Die Head
Cutter Assembly; Nu-Clear Oil; Quick-Open Right Hand NPT Die Head
No. of Speeds
1
1
Free Speed
44 RPM
44 RPM
Motor Type
Standard
Standard
Through-the-Head Oiling
Yes
Yes
Thread Type
NPT
NPT
Max. Bolt Size
1 in
1 in
Min. Bolt Size
5/16 in
5/16 in
Die Head Sizes
1/2 in to 1-1/2 in
1/2 in to 1-1/2 in
No. of Die Heads
1
1
Tool Series
1215
1215
Portability
Portable
Portable
Tool Weight
80 lb
80 lb
Current
24 A
24 A
Features
(2) Carrying Handles; Adjustable Oil Low Control
(2) Carrying Handles; Adjustable Oil Low Control
Frequency
60 Hz
60 Hz
Housing Material
Aluminum
Aluminum
Kit Contents
Bare Tool
Bare Tool
Machine Type
Stationary Power Threading Machine
Stationary Power Threading Machine
Mount Type
Stand
Stand
Oil Capacity
0.4 gal
0.4 gal
Overall Length
25.5 in
25.5 in
Overall Width
14 in
14 in
Power Source
Corded
Corded
Pump Type
Self-Priming Constant Flow Gerotor
Self-Priming Constant Flow Gerotor
Reversible
No
No
Standards
CSA Certified; UL Listed
CSA Certified; UL Listed
Switch Type
On/Off Heavy-Duty and Integral Foot Switch
On/Off Heavy-Duty and Integral Foot Switch
Threading Equipment Included
(2) Die Sets; Cutter; Die Head
(2) Die Sets; Cutter; Die Head
Manufacturer Part Number
61142
61142
Voltage
120 V
120 V
UNSPSC
23171708
23171708
Country of Origin
USA
USA
