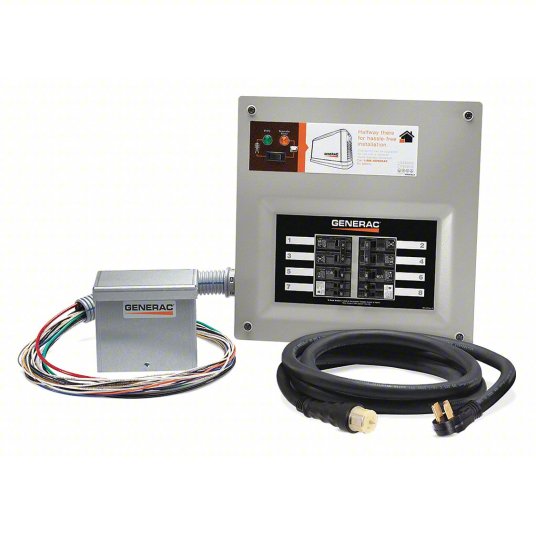

GENERAC Manual Transfer Switch Kit: Single Phase, 120/240V AC, 50 A Current Rating, 16 Spaces, 1
Item 444N68
Mfr. Model 9855
Manual transfer switches have a main toggle for engaging generator power and prewired circuits to ease installation and ensure compatibility between components.
Brand
GENERAC
GENERAC
Manufacturer Part Number9855
PhaseSingle
Rated Voltage
120/240V AC
120/240V AC
Current Rating
50 A
50 A
Number of Spaces
16
16
NEMA Enclosure Rating
1
1
Includes
- 10 ft 6/4 with CS6364 Female End NEMA 14-50 Male Ends Cord
- 12 in Pre-Wired Whip
- Install Manual, Wiring Harness, Conduit and Fittings
- Power Inlet Box: 50A Aluminum (Must be Hardwired)
- Transfer Switch
Overall Height
15-13/16 in
15-13/16 in
Overall Width
15-3/8 in
15-3/8 in
Overall Depth
4 in
4 in
Breakers Included
(2) 20 A 1P; 20 A 2P; 30 A 2P
(2) 20 A 1P; 20 A 2P; 30 A 2P
Color
Gray
Gray
Compatible with Brand
Generac
Generac
Compatible with Manufacturer Model Number
GP15000E; GP17500E; XG10000E; XP10000E
GP15000E; GP17500E; XG10000E; XP10000E
Enclosure Material
Aluminum
Aluminum
Ground Bar Kit
Mfr. No. 0K9607
Mfr. No. 0K9607
Includes Power Indicator Lights
Yes
Yes
Manufacturer Warranty
5 yr Limited
5 yr Limited
Maximum Number of Tandem Breakers
2
2
Maximum Wattage
11 kW
11 kW
Maximum Wire Size
4 AWG
4 AWG
Minimum Wire Size
6 AWG
6 AWG
Mounting Type
Flush/Wall
Flush/Wall
NEMA Connector
Non-NEMA (CS6377)
Non-NEMA (CS6377)
Number of Circuits
16
16
Prewired
Yes
Yes
Required Main Breaker
50 A
50 A
Standards
cETLus
cETLus
UNSPSC
26131803
26131803
Country of Origin
USA
USA
