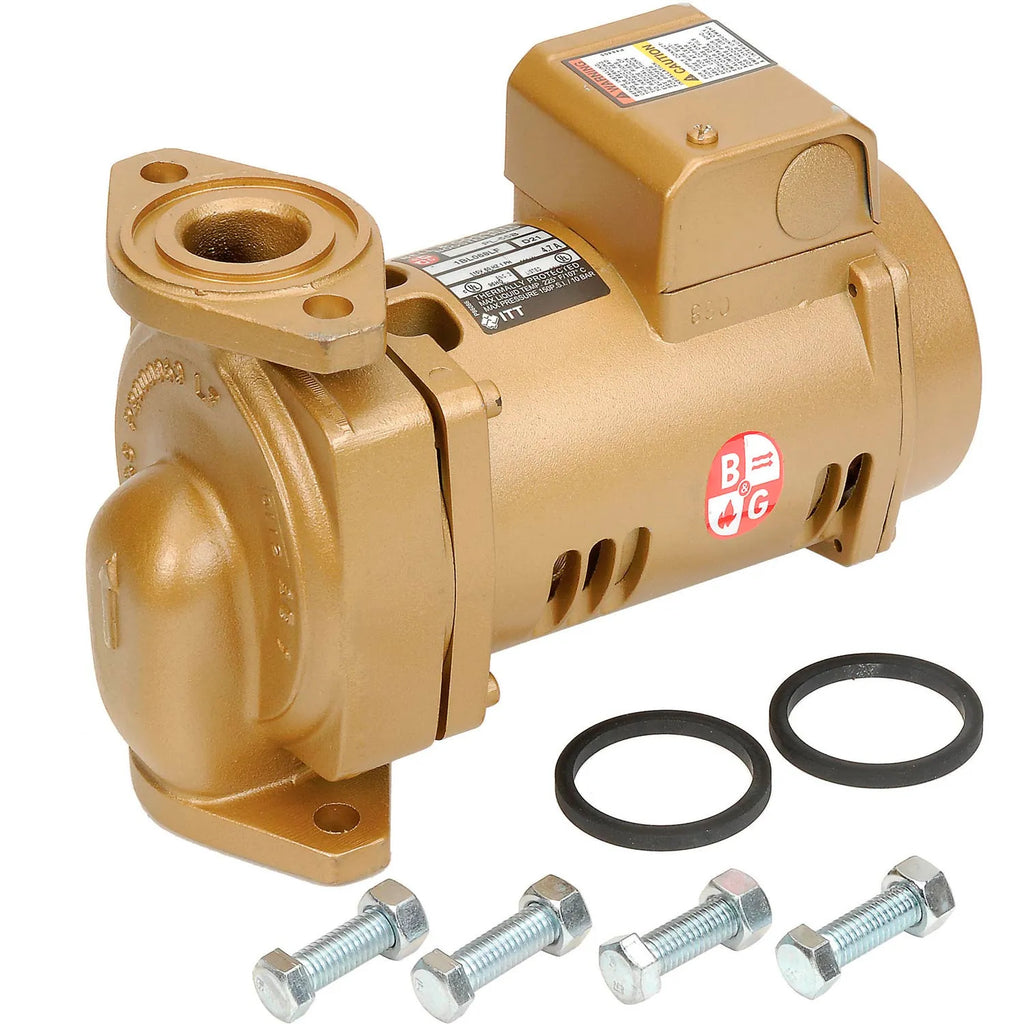

Maintenance-Free Series PL™ Bronze Circulator PL 55B Pump 1BL068LF - 2/5HP, 115V
Model #: WBB46907
MPN #: 1BL068LF
Maintenance-Free Series PL™ Bronze Circulator PL 55B Pump 1BL068LF - 2/5HP, 115V/60/1
permanently lubricated maintenance free circulator, dry-motor design, 25% more efficient than competition. Carbon/silicon caarbide seal on a stainless steel shaft sleeve for long life and rugged operation. Max. working pressure 150 psig, max. operating temperature 225°F.
| Inlet Connection NPT | 3/4;1; 1-1/4; 1-1/2 in |
Product Details
| RPM | 3250 rpm |
| Horsepower | 2/5 HP |
| Amperage | 4.7 A |
| Hertz | 60 Hz |
| Flange Face to Face | 6-3/8 |
| Max Temperature | 225 °F |
| Pressure | 150 psi |
| Motor Type | ODP |
| Impeller Material | Glass Filled PPS |
| Matching Connecting Included | No |
| Voltage | 115 V |
| Phase | 1 |
| Manufacturers Part Number | 1BL068LF |
| Respirator Connection Type | Flange |
| Housing Material | Bronze |
| Brand | Bell & Gossett |
Warranty
| Warranty | 18 mo |
