(2) 75X-8014 Stackable Leads, (2) TP220-4201 Test Probes, 754-8016 Alligator Clips, AC280-5001 SureGrip Hook Clips, Carrying Case

LCD

EN61326

24 V DC

(6)AAA Batteries

Product Information
MFR #

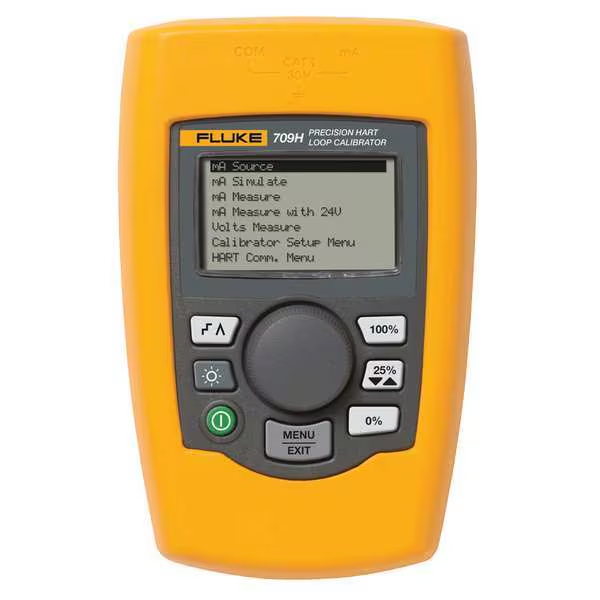

FLUKE-709H

UPC #
095969780124
Country of Origin
China
Dimensions
Manufacturers Warranty Length
3 yr
Battery Size
AAA
Details
Item
Loop Calibrator
Includes
(2) 75X-8014 Stackable Leads, (2) TP220-4201 Test Probes, 754-8016 Alligator Clips, AC280-5001 SureGrip Hook Clips, Carrying Case
Display
LCD
Standards
EN61326
Loop Supply Voltage
24 V DC
Powered By
(6)AAA Batteries
Current Measurement Range
0 to 24mA DC
Source Current
0 to 20mA DC
Calibration Certificate
NIST with Data
Current Accuracy
0.01% +/-2 Counts
Source/Simulate
4 to 20 mA
Voltage Measurement Range
0 to 30V DC
Max. Loop Current
20mA DC
Voltage Accuracy
0.01% +/-2 Counts
Product Type
Loop Calibrator
Communication Protocol
HART
Calibration Certificate Type
NIST
Digital Display Screen Type
LCD
Includes Batteries
Batteries Included
Source Voltage - Maximum
30 V DC
Current Measurement - Minimum
0 mA
Loop Current - Maximum
20 mA
Voltage Measurement - Maximum
30 V DC
Voltage Measurement - Minimum
0 V DC
Source Voltage - Minimum
0 V DC
Battery Chemistry
Alkaline
Source Current - Minimum
0 mA
Parameters Measured
DC Current, DC Voltage
Current Measurement - Maximum
24 mA
Source Current - Maximum
20 mA
Number of Batteries Required
6
