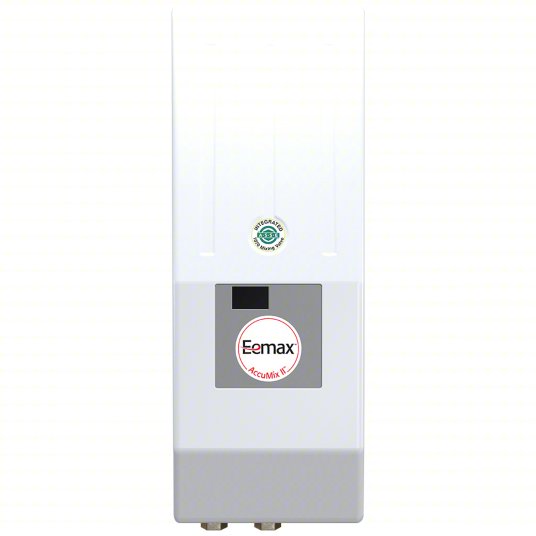

Electric Tankless Water Heater: Indoor, 3,500 W, 1.5 gpm Max. Flow Rate, 14.5 in Overall Ht
- Item
- 481R29
- Mfr. Model
- AM004120T
- Brand
- EEMAX
- Sub-brand
- AccuMix II(TM)
- Manufacturer Part Number
- AM004120T
- Current
- 29 A
- Operating Voltage
- 120V AC
- Minimum Flow Activation
- 0.3 gpm
- Adjustable Thermostat
- No
- Default Temperature
- 105 °F
- Environment
- Indoor
- Mounting Orientation
- Horizontal; Vertical
- Manufacturer Warranty Length
- 1 yr on Parts; 5 yr Limited on Leaks
- NEMA Rating
- Not Rated
- Maximum Delivered Temperature
- 110 °F
- Control Type
- Digital Display with Keypad
- Cold Inlet Size
- 3/8 in
- Overall Depth
- 4 in
- Overall Height
- 14.5 in
- Overall Width
- 5.25 in
- Power Consumption
- 3,500 W
- Standards
- ADA Compliant; ASSE 1070; cULus Listed; NSF/ANSI 372 MH49688; UPC 407.3
- Temperature Rise @ Flow
- 16°F @ 1.5 gpm; 24°F @ 1 gpm; 48°F @ 0.5 gpm; 80°F @ 0.3 gpm
- Maximum Water Pressure
- 150 psi
- Market
- Commercial
- Application
- Kitchen Sinks; Lavatory Sinks; Metering Faucets; Sensor Faucets
- Maximum Flow Rate
- 1.5 gpm
- Housing Material
- Thermoplastic
- Electrical Connection Type
- Power Cord and Pl
- Phase
- Single
- Features
- High Temperature Limit Switch; Only One Input Line Needed for Installation; Safestart Technology Prevents Dry-Fire; Self-Diagnostics with Intelligent Controls
- Minimum Delivered Temperature
- 85 °F
- Element Material
- Nichrome
- Minimum Water Pressure
- 35 psi
- Mounting Type
- Wall Mounting
- Cord Conductor Gauge
- 10 AWG Wire
- UNSPSC
- 40101825
- Country of Origin
- USA
-
Point-of-use electric water heaters are tankless and sized for single applications and small load requirements. These indoor units have a small footprint and provide on-demand hot water right at the source for sink applications in airports, restaurants, and office buildings.
