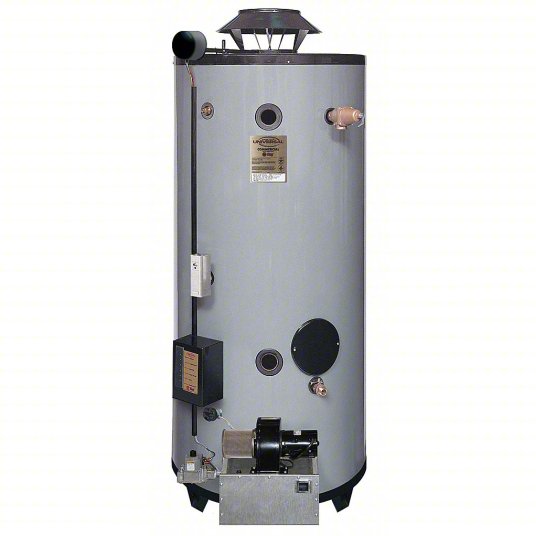

Commercial Gas Water Heater: Natural Gas, Low NOx, 75 gal, 125,000 BTU, 65.5 in Ht
- Item
- 35Z887
- Mfr. Model
- GNU75-125
- Brand
- RHEEM-RUUD
- Sub-brand
- Rheem Ruud
- Manufacturer Part Number
- GNU75-125
- Recovery Rate @ Rise
- 101 gph @ 120°F; 110 gph @ 110°F; 121 gph @ 100°F; 135 gph @ 90°F; 173 gph @ 70°F; 242 gph @ 50°F; 87 gph @ 140°F; 93 gph @ 130°F
- Market
- Commercial
- Gas Inlet Size
- 3/4 in
- Ignition Type
- Direct Spark to Pilot
- Maximum Delivered Temperature
- 180 °F
- Maximum Water Pressure
- 150 psi
- Fuel Type
- Natural Gas
- Low NOx
- Yes
- Water Connection Location
- Side
- Vent Connection Size
- 5 in
- Vent Type
- Standard
- Maximum Heating Capacity
- 125,000 BTU/ft/sq ft/hr/° F
- First Hour Rating
- 174 gal
- Maximum Recovery Flow Rate
- 242 gph @ 40°F
- Tank Diameter
- 26.25 in
- Hot Outlet Size
- 1-1/2 in
- Overall Height
- 65.5 in
- Operating Voltage
- 120V AC
- Included Valves
- Drain; Temperature and Pressure Relief
- Standards
- ANSI Z21.10.3; ASHRAE 90.1b-2001; CSA Certified
- Tank Capacity
- 75 gal
- Manufacturer Warranty Length
- 1 yr Parts; 3 yr Limited Tank
- Features
- Full Port/Full Flow Brass Drain Valve; LED Diagnostic System
- Height to Gas Inlet
- 7 in
- Height to T and P Valve
- 61 in
- Height to Cold Inlet
- 25 in
- Minimum Delivered Temperature
- 120 °F
- Height to Hot Outlet
- 56 in
- Thermal Efficiency
- 90 %
- UNSPSC
- 40101826
- Country of Origin
- USA (subject to change)
-
- Product Description
-
General purpose commercial gas water heaters are commonly used for moderate demand applications.
