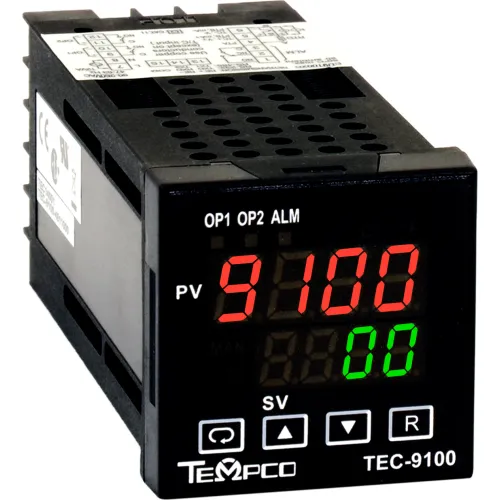

Temperature Control - Prog, 90-250V, SSR, TEC14040

Features:

• 1/16 DIN size - 48 mm x 48 mm
• Fuzzy Logic PID heat and cool control
• PID Control - Auto-tuning on cold or warm start
• Short panel depth - only 4-1/8" (105 mm) required
• Universal programmable sensor input
• Highly versatile - 6 types of output available
• Output 2 can be programmed as output or alarm
• Universal input power, 90-250 VAC or 11-26 VAC/VDC
• Highly accurate universal input
• Optional NEMA 4X / IP65 front panel
• Bumpless transfer to manual mode during sensor failure
• Wide variety of alarm mode selections
• Optional RS-232 or RS-485 communications interface
• Bright 0.40" (10 mm) red LED process display
• 0.31" (8 mm) green LED setpoint display
• High performance at a very low price
