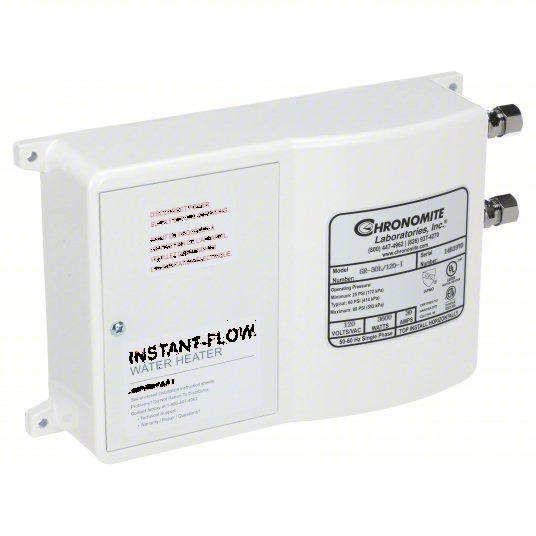

Electric Tankless Water Heater: Indoor, 3,600 W, 1.5 gpm Max. Flow Rate
- Item
- 6DXT2
- Mfr. Model
- SR-30L/120 HTR-I
-
Point-of-use electric water heaters are tankless and sized for single applications and small load requirements. These indoor units have a small footprint and provide on-demand hot water right at the source for sink applications in airports, restaurants, and office buildings.
- Brand
- CHRONOMITE LABS
- Manufacturer Part Number
- SR-30L/120 HTR-I
- Current
- 30 A
- Operating Voltage
- 120V AC
- Minimum Flow Activation
- 0.35 gpm
- Adjustable Thermostat
- No
- Environment
- Indoor
- Mounting Orientation
- Horizontal
- Maximum Delivered Temperature
- 160 °F
- Cold Inlet Size
- 3/8 in
- Hot Outlet Size
- 3/8 in
- Overall Depth
- 2.75 in
- Overall Height
- 6.25 in
- Overall Width
- 9.63 in
- Power Consumption
- 3,600 W
- Standards
- ADA Compliant; cETLus Listed; CSA Certified; IAPMO; UL Listed; UPC
- Temperature Rise @ Flow
- 25°F @ 1 gpm; 33°F @ 0.75 gpm; 61°F @ 0.40 gpm
- Maximum Water Pressure
- 80 psi
- Market
- Commercial; Residential
- Application
- Hospitality Sink; Manual Hand Washing Faucet
- Maximum Flow Rate
- 1.5 gpm
- Housing Material
- Aluminum
- Phase
- Single
- Minimum Delivered Temperature
- 140 °F
- Hot Outlet Type
- Compression
- Cold Inlet Type
- Compression
- Element Material
- Celcon Plastic
- Minimum Water Pressure
- 25 psi
- Includes
- Compression Fittings; Faucet Flow Control
- Mounting Type
- Wall Mounting
- Cord Conductor Gauge
- 10 AWG Wire
- UNSPSC
- 40101825
- Country of Origin
- USA
