Cable Tray Grounding Connector: Copper, 2 Grounding Wires
Item 22C005
Mfr. Model GC2525CT

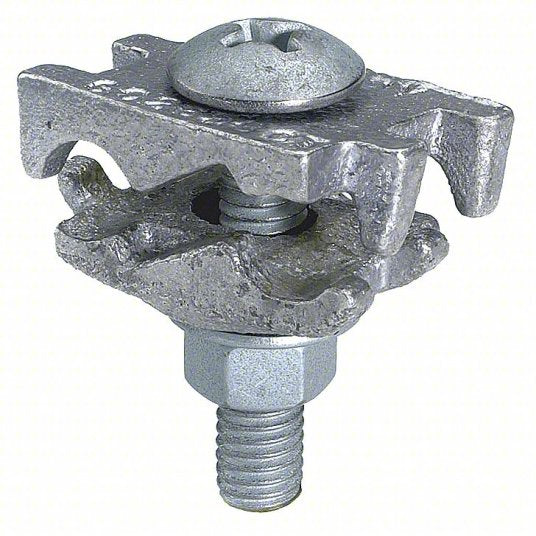

These ground clamps connect grounding wire to cable trays. They clamp the ground wire on one side and the cable tray on the other.
Brand BURNDY
Grounding Wire Size
- 6 to 1/0 AWG SOL
- 6 to 1/0 AWG STR
- 7 to 1/0 AWG STR
Grounding Wires Connected To Cable Tray
Material Copper
Number of Grounding Wires 2
Description/Special FeaturesDirect Burial; Ribbed Neck Bolt
For Use WithAluminum Conductor; Cable Tray; Copper Conductors; Flat Bar
Overall Length 1-1/8 in
Type - Grounding Connector Mechanical
Item Cable Tray Grounding Connector
Manufacturer Part Number GC2525CT
StandardsUL Listed Direct Burial; UL467
Accessory Type Ground Clamp
Sub-brand BURNDY
For Minimum Ground Conductor Wire Size 6 AWG SOL
For Maximum Ground Conductor Wire Size 1/0 AWG STR
Overall Height 1-15/16 in
Overall Width 1-7/16 in
Torque 240 in-lb
Displayed Brand BURNDY
Package Quantity 1
UNSPSC 39121408
Country of Origin USA
These ground clamps connect grounding wire to cable trays. They clamp the ground wire on one side and the cable tray on the other.
