Grounding Connector: Copper, 1/0 AWG to 250 kcmil STR/2/0 to 4/0 AWG SOL Grounding Wire Size, BURNDY

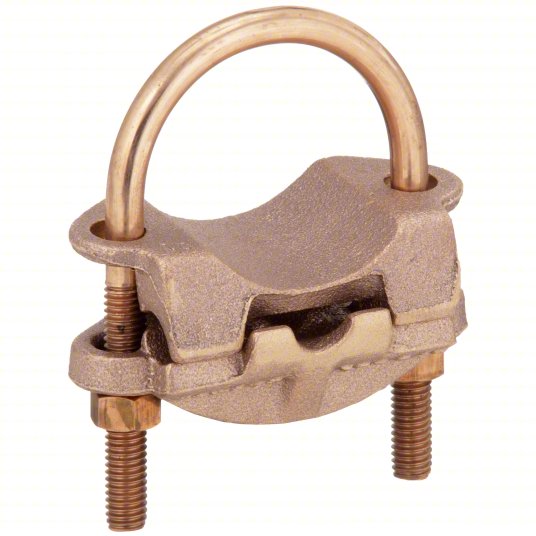

These ground clamps use a U-bolt to make perpendicular or parallel connections of conductors to both water pipe and grounding rods. The U-bolt fits over the pipe or rod and tighten down with screws. These clamps are suitable for direct-burial applications.
BrandBURNDY
Grounding Wire Size
- 1/0 AWG to 250 kcmil STR
- 2/0 to 4/0 AWG SOL
Grounding Wires Connected To#11 Rebar; 1-1/4 in Pipe; 1-3/8 in to 1-1/2 in Rod
Material Copper
For Maximum Pipe Size 1-1/4 in
Number of Grounding Wires 1
Description/Special FeaturesDirect Burial
For Use With Copper Conductors; Ground Rods; Pipes; Rebar
Overall Length 1-1/2 in
Type - Grounding Connector Mechanical
Item Grounding Connector
Manufacturer Part Number GAR1629
StandardsUL Listed Direct Burial ; UL467
Accessory Type Grounding Connector
Sub-brand BURNDY
For Minimum Ground Conductor Wire Size 2/0 AWG SOL
For Maximum Ground Conductor Wire Size 250 kcmil
For Minimum Pipe Size 1-1/4 in
Overall Height 3-1/2 in
Overall Width 3 in
Torque 240 in-lb
For Rod Diameter 1-3/8 in to 1-1/2 in
Displayed Brand BURNDY
Package Quantity 1
UNSPSC 39121408
Country of Origin USA
Item 22A979
Mfr. Model GAR1629
