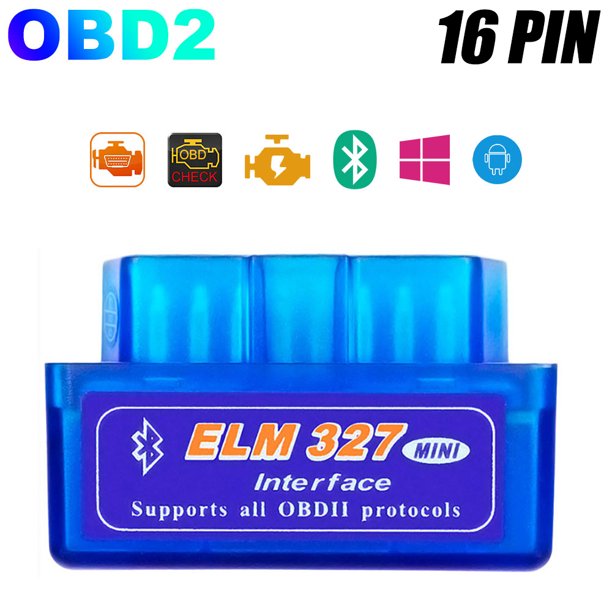

ELM327 Bluetooth V1.5 for Android Torque OBD 2 Interface OBD2 Scanner Super MINI ELM 327 Support OBDII Protocols code reader
Highlights:
The newly developed wireless scan tool.
It supports almost OBD-II protocols.
It is the latest version 1.5
Bluetooth connection, no Batteries, Cables, or Switches.
Wireless (Bluetooth) 5~ 10 meters
Retrieve Fault Codes (DTCs) and clear Check Engine lights.
Can also be used with a PC with a Bluetooth Card.
Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Display current sensor data, including:
1.Engine RPM
2.Calculated Load Value
3.Coolant Temperature
4.Fuel System Status
5.Vehicle SpeedV1.5
6.Short Term Fuel Trim
7.Long Term Fuel Trim
8.Intake Manifold Pressure
9.Timing Advance
10.Intake Air Temperature
11.Air Flow Rate
12.Absolute Throttle Position
13.Oxygen sensor voltages/associated short term fuel trims
14.Fuel System status
15.Fuel Pressure
Features:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Set the maximum number of responses to obtain
Remove spaces from ECU responses (to speed data transmission)
Store a unique identifier in EEPROM
Set the CAN mask and filter with one command
Easily switch between variable and fixed CAN message lengths
Send CAN remote frames (RTRs)
Multi-Protocol Support:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
*default settings (user adjustable)
Vehicle Coverage:
Works on most of OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles .
But can't support all OBDII cars.
If you mind this,please do not place order.Thanks.
For Alfa Romeo/ For Ad/ For Bentley/ For BMVV/ For C-adillac/ For C-hevrolet/ For Chrysl/For C-itroen/ For Daewoo/ For F-iat/ For F-ord/ For G-M/ For Hod/ For H-yundai/For Isuzu/For J-aguar/ For J-eep/ For Kia/ For Lad over/ For L-exus/ For M-azda/ For Mercury/ For Mini/ For N-isan/ For M-itsubishi/ For O-pel/ For P-eugeot/ For Posch/ For Re .nault/ For Ro ver/ For Saab/ For Seat/ For Sk-oda/ For Toyt/ For Vauxhall/ For V-olvo/ For VW
The newly developed wireless scan tool.
It supports almost OBD-II protocols.
It is the latest version 1.5
Bluetooth connection, no Batteries, Cables, or Switches.
Wireless (Bluetooth) 5~ 10 meters
Retrieve Fault Codes (DTCs) and clear Check Engine lights.
Can also be used with a PC with a Bluetooth Card.
Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Display current sensor data, including:
1.Engine RPM
2.Calculated Load Value
3.Coolant Temperature
4.Fuel System Status
5.Vehicle SpeedV1.5
6.Short Term Fuel Trim
7.Long Term Fuel Trim
8.Intake Manifold Pressure
9.Timing Advance
10.Intake Air Temperature
11.Air Flow Rate
12.Absolute Throttle Position
13.Oxygen sensor voltages/associated short term fuel trims
14.Fuel System status
15.Fuel Pressure
Features:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Set the maximum number of responses to obtain
Remove spaces from ECU responses (to speed data transmission)
Store a unique identifier in EEPROM
Set the CAN mask and filter with one command
Easily switch between variable and fixed CAN message lengths
Send CAN remote frames (RTRs)
Multi-Protocol Support:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
*default settings (user adjustable)
Vehicle Coverage:
Works on most of OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles .
But can't support all OBDII cars.
If you mind this,please do not place order.Thanks.
For Alfa Romeo/ For Ad/ For Bentley/ For BMVV/ For C-adillac/ For C-hevrolet/ For Chrysl/For C-itroen/ For Daewoo/ For F-iat/ For F-ord/ For G-M/ For Hod/ For H-yundai/For Isuzu/For J-aguar/ For J-eep/ For Kia/ For Lad over/ For L-exus/ For M-azda/ For Mercury/ For Mini/ For N-isan/ For M-itsubishi/ For O-pel/ For P-eugeot/ For Posch/ For Re .nault/ For Ro ver/ For Saab/ For Seat/ For Sk-oda/ For Toyt/ For Vauxhall/ For V-olvo/ For VW
ELM327 Bluetooth V1.5 for Android Torque OBD 2 Interface OBD2 Scanner Super MINI ELM 327 Support OBDII Protocols code reader
