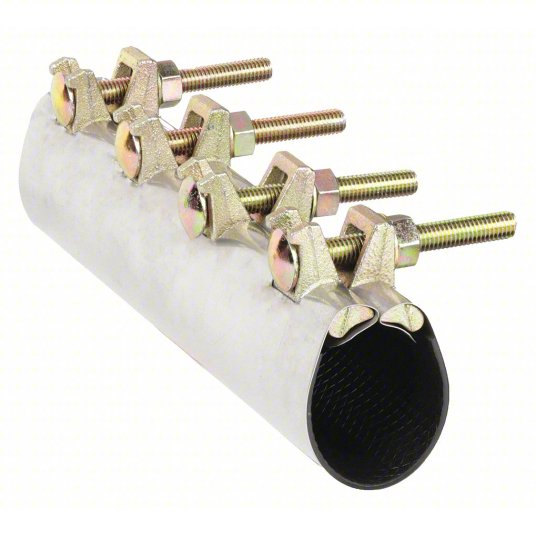

Repair Clamp: For 3 in Pipe, 12 in Overall Lg, 304 Stainless Steel
These repair clamps are lined with a partial gasket to seal pinholes or punctures in a tube or pipe. They are installed by bolting and tightening the clamp ends together which seals the gasket against the tube or pipe surface.
- Item
- 5WMR5
- Mfr. Model
- 330-1012
- Brand
- APPROVED VENDOR
- Bolt Material
- Steel
- Gasket Material
- Nitrile Rubber
- For Pipe Size
- 3 in
- Maximum Operating Pressure
- 150 psi
- Maximum Vacuum Pressure
- 150
- Overall Length
- 12 in
- Outlet Connection
- No
- For Fluid Type
- Aromatic Hydrocarbons; Gasoline; Mineral Oils; Natural Gas; Petroleum Oils; Vegetable Oils
- Minimum Operating Temperature
- -40 °F
- Maximum Operating Temperature
- 212 °F
- Product Type
- Partial Coverage Clamp
- Gasket Coverage
- Partial Coverage
- Number of Bolts
- 4
- Features
- Punctures or Splits in Pipe; Stainless Steel Construction Resists Corrosion
- Lug Material
- Iron
- Bolt Diameter
- 7/16 in
- Nut Material
- Steel
- Clamp Material
- Stainless Steel
- Clamp Material Grade
- 304
- UNSPSC
- 40142322
- Country of Origin
- USA
