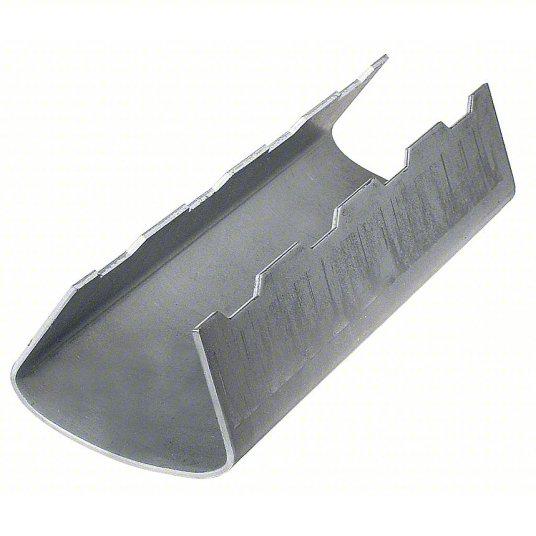

Pipe Protection Saddle: Steel, For 8 in Insulation Outside Dia, 12 in Overall Lg, 1
Insulation heat shields support insulated pipe on a roller and prevent the insulation from getting crushed. These shields typically cut into the insulation and are often welded to the pipe.
- Item
- 4LUZ6
- Mfr. Model
- 0500072103
- Brand
- ANVIL
- For Insulation Outside Diameter
- 8 in
- For Pipe Size
- 8 in
- For Insulation Thickness
- 2 in
- Load Capacity
- 1,200 lb
- Material
- Steel
- Maximum Operating Temperature
- 650 °F
- Mount Type
- Roller
- Overall Length
- 12 in
- Standards
- ANSI/MSS SP-69; Federal Specification A-A-1192A, Type 39A; Federal Specification A-A-1192A, Type 39B; MSS SP-58, Type 39A; MSS SP-58, Type 39B; WW-H-171-E, Type 40A; WW-H-171-E, Type 40B
- Application
- Insulated High Temperature Systems
- Features
- Weather Tight Covering
- UNSPSC
- 40142306
- Country of Origin
- USA
Item 4LUZ6
Mfr. Model 0500072103
Insulation heat shields support insulated pipe on a roller and prevent the insulation from getting crushed. These shields typically cut into the insulation and are often welded to the pipe.
