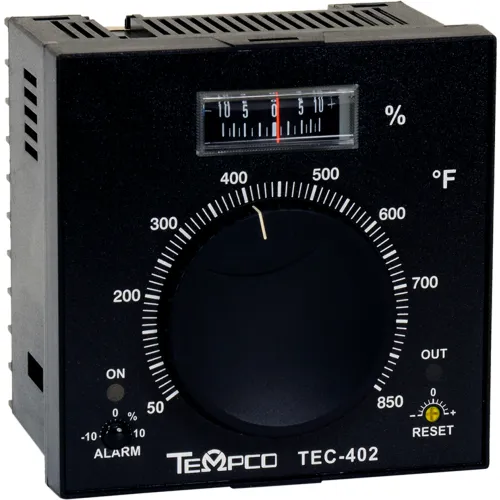

Temperature Control - Analog, J, 120/240V, TEC57201
Weights & Dimensions
Width 3-3/8 in Depth 2-9/16 in DIN Size 1/4 Tolerance (+/-) 2 Percent of Span psi Length 3-3/8 in Product Details
Temperature Control Range 50 to 850 °F Type Analog Control Period Seconds 20 Power Consumption 5VA W Display Type Type J tc Voltage 240 / 120 V Sensor Input Type J tc Description Temperature Controller Manufacturers Part Number TEC57201 Output Relay-5A BTU Control Mode Proportional Brand Tempco Features:
- 1/4 DIN size - 96 mm x 96 mm
- Temperature control with deviation meter
- Laser trimmed ASIC Components
- Short panel depth - only 2" (51 mm) required
- On-Off or time proportional selections
- Wide selection of output options
- Potentiometer setpoint
- Sensor break protection
- Good performance at a very low price
Model #: T9FB383097
MPN #: TEC57201
