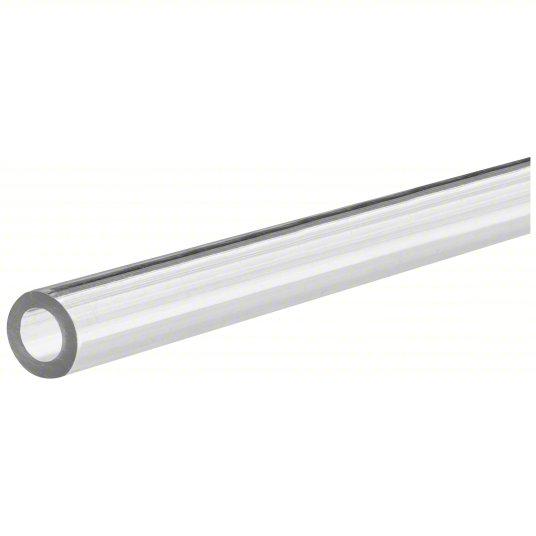

Tubing: Silicone, 1 in ID, 1 1/4 in OD Not Reinforced

Item

742R36

Mfr. Model

ZUSA-HT-750

Soft silicone tubing offers maximum flexibility. This food-grade tubing meets strict requirements to be considered safe for food and beverage processing.

Inside Diameter

1 in

Outside Diameter

1-1/4 in

Wall Thickness

0.125 in

Reinforcement

Not Reinforced

Bend Radius

3-3/4 in

Hardness

Shore A 70

Stripe Color

No Stripe

Clarity

Semi-Clear

Flexibility

Semi-Flexible

Fitting Compatibility

Barbed

Maximum Operating Pressure

40 psi

Minimum Operating Temperature

-120 °F

Maximum Operating Temperature

480 °F

Vacuum Rated

Not Rated for Vacuum

Application

Beverages; Food; Water

Standards

FDA; NSF 51

Autoclavable

Yes

Food and Beverage Compatibility

Beer; Citric Acid; Distilled Water; Glycerin; Linseed Oil; Milk; Non-Potable Water; Orange Juice; Potable Water; Salt Water; Soft Drinks; Vinegar

Chemical Compatibility

Acetic Acid 10%; Calcium Chloride; Hydrogen Peroxide; Potassium Sulfate; Sodium Chloride; Sodium Hypochlorite 5.5%; Zinc Chloride

Petroleum Product Compatibility

Mineral Oil

Flow Application

Dairy; Food and Beverage; Pharmaceutical

For Environment

High Temperature

For Fluid Type

Beverages

Material

Silicone

Peristaltic Pump Compatible

Yes

Resistance Properties

High Temperature Resistant

UNSPSC

31231313

Country of Origin

China

Soft silicone tubing offers maximum flexibility. This food-grade tubing meets strict requirements to be considered safe for food and beverage processing.
