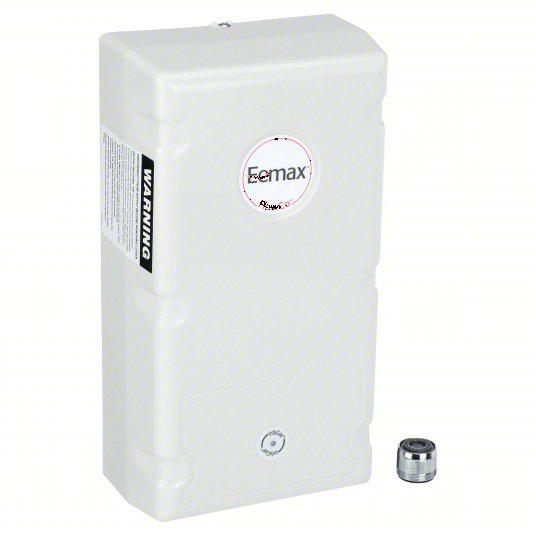

Electric Tankless Water Heater: Indoor, 3,500 W, 2 gpm Max. Flow Rate, 10.75 in Overall Ht
- Item
- 485A96
- Mfr. Model
- SPEX35
-
Point-of-use electric water heaters are tankless and sized for single applications and small load requirements. These indoor units have a small footprint and provide on-demand hot water right at the source for sink applications in airports, restaurants, and office buildings.
- Brand
- EEMAX
- Sub-brand
- FlowCo(TM)
- Manufacturer Part Number
- SPEX35
- Current
- 15 A
- Operating Voltage
- 240V AC
- Minimum Flow Activation
- 0.3 gpm
- Environment
- Indoor
- Mounting Orientation
- Horizontal; Vertical
- Manufacturer Warranty Length
- 1 yr on Parts; 5 yr Limited on Leaks
- Maximum Delivered Temperature
- 140 °F
- Cold Inlet Size
- 3/8 in
- Overall Depth
- 3 in
- Overall Height
- 10.75 in
- Overall Width
- 5.25 in
- Power Consumption
- 3,500 W
- Standards
- ADA Compliant; cETLus Listed; NSF/ANSI 372; UL Listed E86887
- Temperature Rise @ Flow
- 12°F @ 2 gpm; 16°F @ 1.5 gpm; 24°F @ 1 gpm; 32°F @ 0.75 gpm; 48°F @ 0.5 gpm; 80°F @ 0.3 gpm
- Maximum Water Pressure
- 150 psi
- Market
- Commercial
- Application
- Kitchen Sinks; Lavatory Faucets; Metering Faucets; Sensor Faucets
- Maximum Flow Rate
- 2 gpm
- Housing Material
- Thermoplastic
- Phase
- Single
- Features
- High Temperature Limit Switch; Infocue Visible LED Indicator Communicates System Status and Heater Operation Feedback; Only One Water Line Needed for Installation; Safestart Technology Prevents Dry-Fire Occurrence; Self-Diagnostics with Intelligent Controls
- Minimum Delivered Temperature
- 70 °F
- Cold Inlet Type
- Compression
- Element Material
- Nichrome
- Minimum Water Pressure
- 30 psi
- Mounting Type
- Wall Mounting
- Cord Conductor Gauge
- 14 AWG Wire
- UNSPSC
- 40101825
- Country of Origin
- USA
