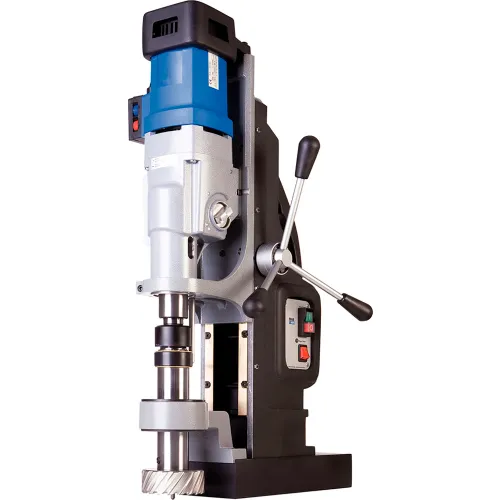

CS Unitec Reversible Magnetic Drill, Up to 6" Dia. Hole Capacity, 2-15/16 HP, 110V

Model #: WBB3216051

MPN #: MAB 1300

For large capacity drilling in steel the MAB 1300 magnetic drill has the largest hole cutting capacity in the industry – 6" diameter with annular cutters. The drill's powerful 20 Amp/110 Volt double-insulated, reversible motor is ideal for drilling structural steel and other metals. Designed for continuous use, the 4-speed oil bath gearbox is suitable for applications requiring high power. With the MAB 1300's 12" stroke, other capabilities include large-hole tapping up to 1-5/8" diameter; twist drilling up to 1-3/4", countersinking up to 3" and reaming up to 2". The MAB 1300 has a 1-1/4" weldon tool holder with an adapter for 3/4" weldon shanks.

The high-density, three-coil magnet has a holding strength of up to 23,600 pounds, providing the pulling power required for heavy-duty drilling. The unit includes an integrated automatic cooling/lubrication system to increase the life of the annular cutters by reducing friction and wear.

Annular cutter drilling capacity 6" diameter up to 1" thick in carbon steel - Use TCT cutters for large diameters.

Features:

• Reversible motor for tapping and reaming
• Infinitely variable torque control and full-wave control electronics
• Automatic internal lubrication

Safety:

• SafeMag™: Green/Red LED magnetic force indicator for safe operation
• CoolMag™: Magnet overheating protection
• Emergency-off function: Electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment

Standard Equipment:

• 1 Magnetic drilling machine
• 1 Carrying case on wheels
• 1 Arbor adapter to 3/4" Weldon
• 1 Safety chain
• 1 Hexagon socket screw key SW 6
• 1 Drift key MT4
• 1 Operating manual
• 1 Warranty certificate
• It also includes auto lubrication, allen keys
