CS Unitec Magnetic Drill, Up to 1-1/2" Dia. Hole Capacity, 1-3/8 HP, 110V
Model #: WBB3216029
MPN #: MAB 155PRO

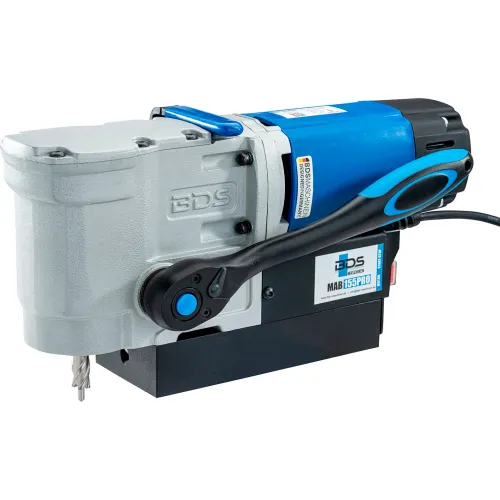

The MAB 155 PRO is an ultra-compact, right-angle magnetic drill with a horizontal motor mount for drilling in tight spaces. Includes an LED light for increased visibility of the cutting surface for enhanced precision. The MAB 155 PRO drills up to 1-1/2 inch diameter while being ultra-compact- only 7-1/8" high. The ratchet-style handle can be mounted on either side and has rear-mounted controls for easy access. Easy Drilling in tight spaces.
Features:
- Advancing lever can be mounted on either left or right side
- Accepts cutters with a 3/4" weldon shank and a maximum depth of cut of 1-1/2"
Safety:
- Internal cable routing
- Simple, ergonomic arrangement of controls for one-handed operation
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
Standard Equipment:
- 1 Magnetic Drilling Machine
- 1 Pilot Pin
- 1 Plastic Carrying Case
- 1 Safety Chain
- 1 Hexagon Socket Screw Key SW 4
- 1 Operating Manual
- 1 Warranty Certificate
- 1 Safety Strap
- 1 Carabin Hook
- 1 Allen Key
Weights & Dimensions
| Length | 13-5/16 |
| Width | 4-3/4 in |
| Height | 7-1/8 in |
| Weight | 24 lbs |
| Size | 13-5/16 x 4-3/4 x 7-1/8 in |
| Column Diameter | 1-1/2 in |
| Base Work Table | 1 in |
| Base Dimensions | 7-1/4 x 3-1/8 in |
Product Details
| RPM | 320 rpm |
| Type | Magnetic Drill |
| Drilling Capacity Cast Iron | 1-1/2 |
| Drilling Capacity Mild Steel | 1-1/2 |
| Style | Portable |
| Motor Voltage | 110 V |
| Phase | 1 |
| Manufacturers Part Number | MAB 155PRO |
| Motor Horsepower | 1-3/8 HP |
| Spindle Taper | 3/4" Weldon |
| Brand | CS Unitec |
