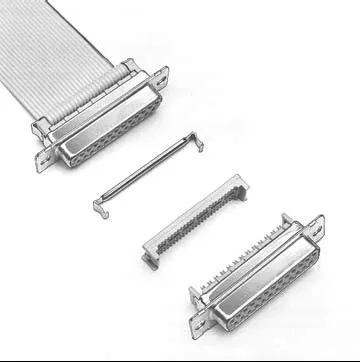

D-Sub Standard Connectors 9P CLOSD COVR SOCKET LOW PROFILE
8309-7000
Datasheet
EDA / CAD Models
Specifications
Description Product Attribute
Similar
Manufacturer 3M
Product Category D-Sub Standard Connectors
Number of Positions 9 Position
Contact Gender Socket (Female)
Termination Style Solder
Mounting Style Through Hole
Mounting Angle Straight
Number of Rows 2 Row
Gender Female
Contact Plating Gold
Type Receptacle
Shell Size 1 (E)
Shell Material Steel
Shell Plating Tin
Filtered Unfiltered
Series 8300
Packaging Kit
Compliance UL
Current Rating 1 A
Product Type D-Sub Connectors - Standard Density
Subcategory D-Sub Connectors
Part # Aliases 05400736808 80610186118 7100170828 7100375019
Export and Environmental Classification
Attribute Description
ECCN EAR99
HTS 8536698000
TARIC 8536699099
RoHS Compliant
Yes
RoHS Compliant
RoHS Exemption Number N/A
Lead(PB) in Terminals
No
Lead Free
REACH SVHC No
REACH Substance Name N/A
