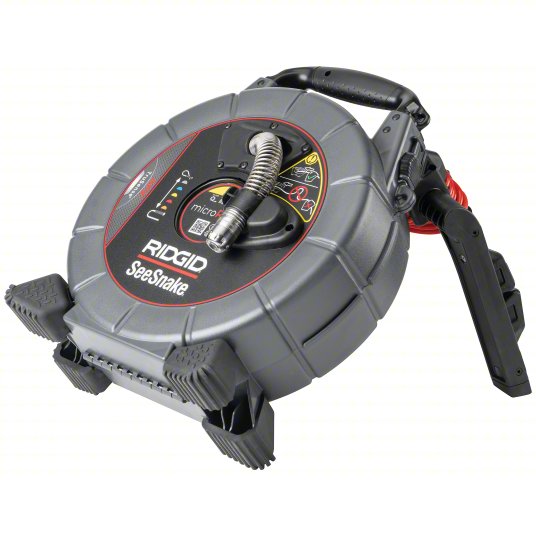

RIDGID Pipe Inspection Camera Reel: SeeSnake® microREEL, 100 ft Lg., 4 in Max. Pipe Dia., Fixed
Item 795CV2
Mfr. Model 70808
-
Ridgid pipe inspection camera reels have a camera head attached to a push cable that feeds from the reel and into pipe. These drain borescopes move the camera head through traps and along straight runs to inspect the pipe. The camera head seals out water to protect internal components and take clear images even while submersed. Selecting a camera for the specified pipe size range ensures an optimal view and reduces the risk of the camera head getting stuck in the pipe. Depending on the model, these camera reels either include a monitor or connect to a compatible Ridgid monitor for viewing images.
Brand RIDGID
Cable Diameter 0.27 in
Cable Lg. 100 ft
Cable Type Mid-Flexible Push Cable
Cable Water Resistance Depth 325 ft
Cable/Push Rod Water Resistance Depth 325 ft
Camera Dia. 0.98 in
Camera Material Stainless Steel
Camera Type Fixed
Camera Water Resistance Depth 328 ft
Compatible Grainger Part Number 53VA61; 55KM75; 61UM31
Compatible Mfr. Model Number 17553; 33108; 35338; 40598; 67307; 69758; 70723; 71498
Compatible Product Type CSX Via
Connector Type2-Pin Plug
Cordless Tool Kit Contents Bare Tool
FeaturesAuto-Image Flip; Enhanced Camera; Mid-Flex Push Cable; Traceability; Visibility-Enhanced High-Efficiency LED
FunctionImage Recording
Includes
- Connection Cable
- Kickstand
Light Type LED
Max. Pipe Dia .4 in
Maximum Operating Temperature 115 °F
Min. Pipe Dia .1/2 in
Minimum Operating Temperature 32 °F
No. of Batteries Included 0
Number of Lights 1
Number of Wheels 0
Overall Height 16-1/4 in
Overall Length 13-1/4 in
Overall Width 8-3/4 in
Power Source Monitor (Not Included)
Product Type Camera Reel
Reel MaterialPlastic; Stainless Steel
Reel Type Enclosed Drum
Resolution 640 x 480
Tilt Sensing Included
Tool SeriesSee Snake® micro REEL
Water Resistance Rating IPX5
Manufacturer Part Number 70808
UNSPSC41111716
Country of OriginUSA (subject to change)
