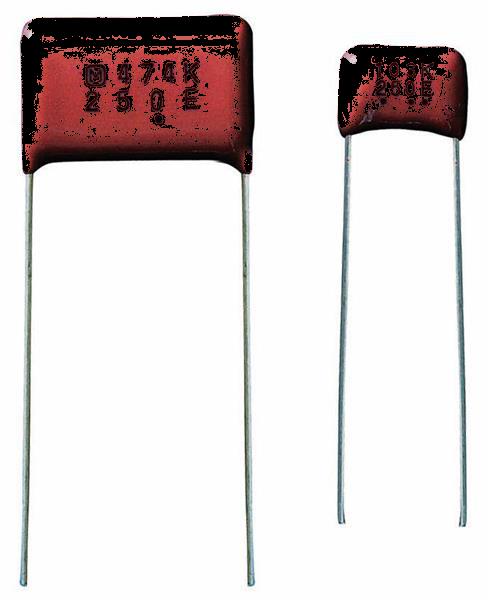

Film Capacitors 630VDC 0.47uF 10% MPET L/S=22.5mm
| Panasonic | ||
| Product Category: | Film Capacitors | |
| RoHS: | ||
| 0.47 uF | ||
| 630 VDC | ||
| Radial | ||
| Polyester | ||
| 22.5 mm (0.886 in) | ||
| 26 mm (1.024 in) | ||
| 9.3 mm (0.366 in) | ||
| General Film Capacitors | ||
| 10 % | ||
| 2 Pin | ||
| 18.5 mm (0.728 in) | ||
| Straight | ||
| - 40 C | ||
| + 105 C | ||
| Bulk | ||
| Brand: | Panasonic | |
| Country of Assembly: | Not Available | |
| Country of Diffusion: | Not Available | |
| Country of Origin: | CN | |
| Lead Diameter: | 0.8 mm | |
| Product Type: | Film Capacitors | |
| 1000 | ||
| Subcategory: | Capacitors | |
| Type: | Metallized Polyester Film Capacitors | |
| Unit Weight: | 0.211644 oz |
Datasheet
ECQ-E6474KF DatasheetDatasheet
Models
PCN
- E6) COC-REACH (2025/12/13)
- E7) FMD PANASONIC DISCLAIMER
- E14) COC-ROHS 2 (2015/863/EU) (2025/10/04)
- E12) COC-ROHS 2 (2011/65/EU) (2015/04/08)
- E10) ENSURE CONFLICT-FREE PROCUREMENT(2011/09/30)
- E2) MATERIAL DECLARATION (2008/05/14)
Polymer & Film MLCC Alternatives
Panasonic Polymer & Film MLCC Alternatives provide the opportunity to replace several MLCCs with one Polymer capacitor. These Panasonic polymer-based capacitors offer a performance edge over conventional electrolytic and ceramic capacitors when it comes to electrical characteristics, stability, longevity, reliability, safety, and life-cycle cost. The various polymer and hybrid capacitors have distinct sweet spots in terms of their ideal voltages, frequency characteristics, environmental conditions and other application requirements. Polymer capacitors come in four main varieties: layered polymer aluminum, wound polymer aluminum, polymer tantalum, and polymer hybrid. Each type has different electrolytic and electrode materials, packaging, and application targets.
Manufacturer Panasonic
Product Category Film Capacitors
Capacitance 0.47 uF
Voltage Rating DC 630 VDC
Termination Style Radial
Dielectric Polyester
Lead Spacing 22.5 mm (0.886 in)
Length 26 mm (1.024 in)
Width 9.3 mm (0.366 in)
Product General Film Capacitors
Tolerance 10 %
Number of Pins 2 Pin
Height 18.5 mm (0.728 in)
Lead Style Straight
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Series ECQE(F)
Packaging Bulk
Lead Diameter 0.8 mm
Product Type Film Capacitors
Subcategory Capacitors
Type Metallized Polyester Film Capacitors
