Photoelectric Sensors CMOS; 500mm; Line; PNP; COM3;
E3AS-HL500LMT M3
Manufacturer:
Omron Automation and Safety
Mfr Part:
E3AS-HL500LMT M3
Datasheet:
| Omron | ||
| Product Category: | Photoelectric Sensors | |
| REACH - SVHC: | ||
| Background Suppression | ||
| 35 mm to 500 mm | ||
| Red Laser | ||
| Built In | ||
| PNP Open Collector | ||
| Connector | ||
| M8 | ||
| 4 Pin | ||
| 10 VDC | ||
| 30 VDC | ||
| - 10 C | ||
| + 50 C | ||
| Brand: | Omron Automation and Safety | |
| Country of Assembly: | Not Available | |
| Country of Diffusion: | Not Available | |
| Country of Origin: | CN | |
| Height: | 52.5 mm | |
| IP Rating: | IP67, IP67G, IP69K | |
| Length: | 28.9 mm | |
| Operating Supply Voltage: | 10 VDC to 30 VDC | |
| Product Type: | Photoelectric Sensors | |
| Series: | ||
| 1 | ||
| Subcategory: | Sensors | |
| Width: | 15.5 mm | |
| Part # Aliases: | E3ASHL500LMTM3 |
Datasheet

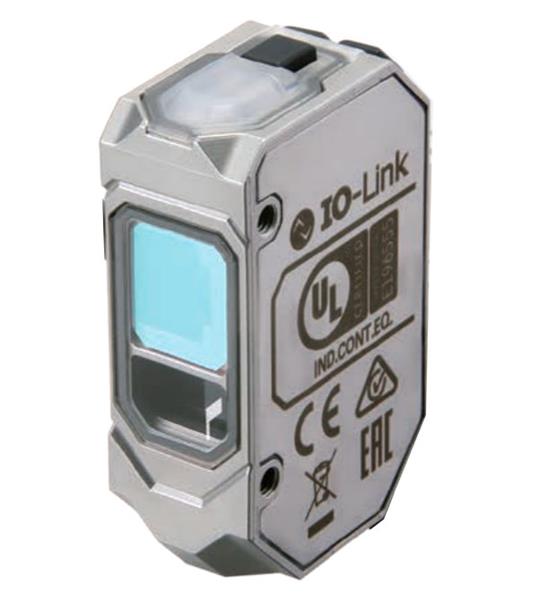

E3AS-HL Distance-Settable Photoelectric Sensors
Omron Industrial Automation E3AS-HL distance-settable photoelectric sensors are CMOS sensors that provide advanced part-detection capabilities. 500mm and 150mm sensing options allow the sensors to be used in most sensing applications. Omron E3AS-HL has spot and line beam options for small parts or uneven surfaces. The antifouling coating prevents contamination on the lens. The series is Ecolab certified in addition to providing IP67/69K/67G protection. IO-Link connectivity allows users to collect and use measurement values (NPN type excluded).
