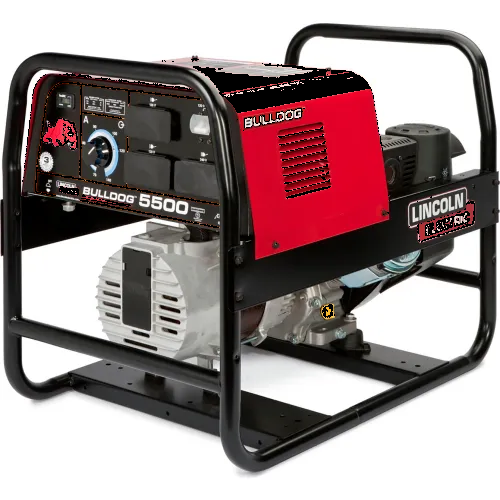

Lincoln Electric® Bulldog® 5500 Engine Driven Welder, Kohler®, 100-199A, 60Hz, 20-25V
Model #: WBB3172957
MPN #: K2708-2
Portable welder/generator with AC welding and AC generator output, great for hobbyists and welders.
Portable AC Welder/AC Generator - It's great for hobbyists and anyone who needs portable AC stick welding and AC generator power! Dependability and long life aided by all-copper windings in rotor and stator with high quality insulation. Red and black powder paint finish offers increased durability with added protection from rust and corrosion. Also ultraviolet resistant to better retain color and gloss. Manufactured under a quality system certified to ISO 9001 requirements and meets U.S. EPA EVAP standards for reduced emissions of gasoline vapor.
Portable AC Welder/AC Generator
Great for anyone who needs portable AC stick welding and AC generator power!
Low-Lift™ Grab Bars
Up to 140 amps of AC output for many applications.
5,500 Watts Surge (4,000 Watts Continuous) AC Generator Power
Portable AC Welder/AC Generator - It's great for hobbyists and anyone who needs portable AC stick welding and AC generator power! Dependability and long life aided by all-copper windings in rotor and stator with high quality insulation. Red and black powder paint finish offers increased durability with added protection from rust and corrosion. Also ultraviolet resistant to better retain color and gloss. Manufactured under a quality system certified to ISO 9001 requirements and meets U.S. EPA EVAP standards for reduced emissions of gasoline vapor.
Portable AC Welder/AC Generator
Great for anyone who needs portable AC stick welding and AC generator power!
Low-Lift™ Grab Bars
- More leverage for lifting unit on and off truck beds
- Extra protection against product damage.
- Best in class feature!
- Great for all-around sturdy protection.
- Largest diameter tube frame in its class!
- Best in class feature!
Up to 140 amps of AC output for many applications.
5,500 Watts Surge (4,000 Watts Continuous) AC Generator Power
- Many uses! Grinder, work lights, pump, motor starting, or emergency power.
- Plug in a Lincoln® POWER MIG® 140C for wire welding.
- Include: (1) Bulldog 550 Engine Drive Welder
- 3 Years Parts and Labor, Engine warranted separately through engine manufacturer
Weights & Dimensions
| Length | 31-1/2 |
| Width | 21-13/16 |
| Height | 25-5/8 |
| Weight | 198 |
Product Details
| Type | Engine Driven Welder |
| Duty Cycle | 125 A @ 30%, 100 A @ 60% |
| Color | Multi-colored |
| Amperage | 70-140 A |
| Hertz | 60 Hz |
| Polarity | AC |
| Process | Stick |
| Voltage | 20/25 |
| Phase | 1 |
| Description | Portable Engine Driven Welder |
| Manufacturers Part Number | K2708-2 |
| Output | 100-199A BTU |
| Cooling Method | Air |
| Brand | Lincoln Electric |
Warranty
| Warranty | 3 |
Compliance & Certifications
| Certifications | CSA Certified |
