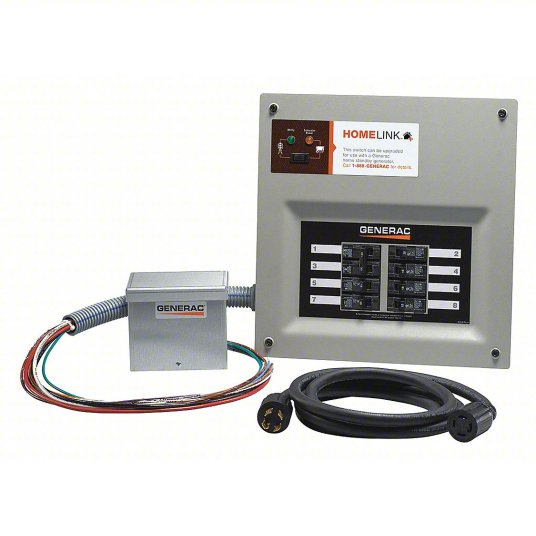

GENERAC Upgradable Manual Transfer Switch: Single Phase, 120/240V AC, 30 A Current Rating, 10 Spaces

Sale
$753.00

Item 39FY99

Mfr. Model 6854

Manual transfer switches have a main toggle for engaging generator power and prewired circuits to ease installation and ensure compatibility between components.

Brand
GENERAC

Manufacturer Part Number
6854

Phase
Single

Rated Voltage
120/240V AC

Current Rating
30 A

Number of Spaces
10

NEMA Enclosure Rating
1

Includes

Conduit and Fittings 12 in Pre-Wired Whip
Install Manual
Male End Female Ends Power Inlet Box: 30A Aluminum (Must be Hardwired)
Transfer Switch Cord: 10 ft 10/4 with L14-30
Wiring Harness

Overall Height
15-13/16 in

Overall Width
15-3/8 in

Overall Depth
4 in

Breakers Included
(5) 15 A 1P; 20 A 1P; 30 A 2P

Color
Gray

Compatible with Brand
Generac

Compatible with Manufacturer Model Number5796; 5798; 5930; 5931; 5935; 5939

Enclosure Material
Aluminum

Includes Power Indicator Lights
Yes

Manufacturer Warranty
5 yr Limited

Maximum Wattage
11 kW

Maximum Wire Size
4 AWG

Minimum Wire Size
10 AWG

Mounting Type
Flush/Wall

NEMA Connector
L14-30

Number of Circuits
10

Prewired
Yes

Required Main Breaker
50 A

Standards
cETLus

UNSPSC
26131803

Country of Origin
USA (subject to change)
