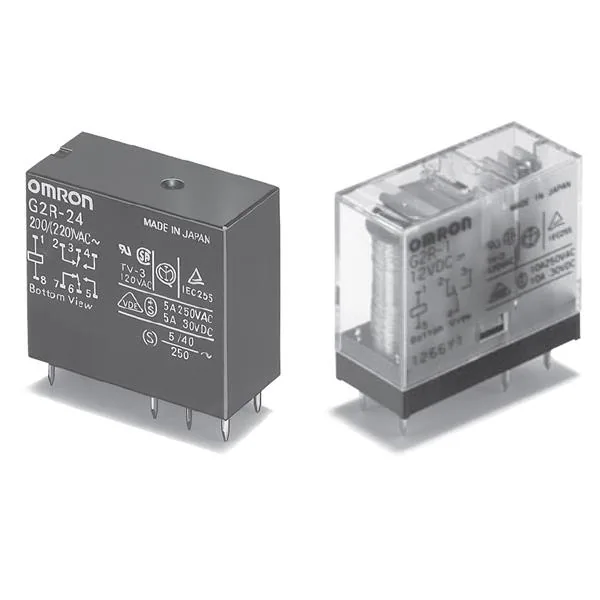

General Purpose Relays High-Capacity SPDT Vented 12VDC
G2R-1-E-DC12
Manufacturer:
Omron Electronics
Mfr Part:
G2R1EDC12BYOMI
Datasheet
| Manufacturer | Omron | |
| Product | Power Relays | |
| Type | High Capacity | |
| Coil Voltage | 12 VDC | |
| Relay Contact Form | 1 Form C (SPDT-NO, NC) | |
| Contact Current Rating | 16 A | |
| Contact Termination | Solder Pin | |
| Mounting Style | Through Hole | |
| Switching Voltage | 380 VAC, 125 VDC | |
| Coil Termination | Solder Pin | |
| Coil Type | Non-Latching | |
| Coil Resistance | 275 Ohms | |
| Coil Current | 43.6 mA | |
| Contact Material | Silver Cadmium Oxide (AgCdO) | |
| Series | G2R | |
| Length | 29 mm | |
| Width | 13 mm | |
| Height | 25.5 mm | |
| Packaging | Bulk | |
| Power Consumption | 530 mW | |
| Product Type | General Purpose Relays | |
| Subcategory | Relays | |
| Part # Aliases | G2R-1E-DC12 G2R1EDC12 G2R1EDC12NC G2R1EDC12BYOMI |
Export and Environmental Classification
| Attribute | Description |
|---|---|
| Country of Origin | Indonesia |
| ECCN | EAR99 |
| HTS | 8536410050 |
| TARIC | 8536411090 |
| RoHS Compliant |
Yes
RoHS Compliant
|
| RoHS Exemption Number | N/A |
| Lead(PB) in Terminals |
No
Lead Free
|
| REACH SVHC | No |
| REACH Substance Name | N/A |
