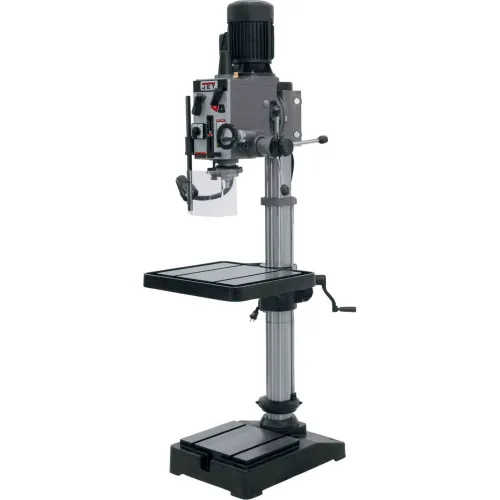

Jet JT9-354020 GHD-20 Geared Head Drill Press, 230V, 3-Phase
Model #: WBB0230797
MPN #: JT9-354020
JET Geared Head Drill Presses are ideal for repetitive drilling in a wide variety of materials. These drill presses are equipped with helical gears for smooth and quiet operation, a quick-release drill ejector and English/Metric depth gauge. T-slotted table, 8 spindle speeds, and a head and table that rotate 360? around the column enhance overall use and supply premier results.
Features:
- 20 Geared head drill presses
- Heavy duty design allows a variety of precision drilling applications
- Easy to read internal depth gauge
- Calibrated fine down feed built-in
- Built-in spindle lock
- Head tilts left or right
- Easy accessible table raiser
- Large production table and T-slotted base
- T-slotted worktable
- Drill chuck arbor
- Draw bar
Weights & Dimensions
| T-Slots Centers | 9 in |
| Size | 20 in |
| Spindle Travel | 5 in |
| Drills to Center of Circle | 20 in |
| Quill Travel | 5 in |
| Quill Diameter | 3 in |
| Spindle Distance To Table (Max) | 30-1/2 in |
| Table Size (L x W) | 21-3/4 X 19-1/2 in |
| Swing | 10 in |
| Column Diameter | 4-1/2 in |
| T-Slots Number And Size | 2 & 5/8 in |
| Spindle Distance To Base | 44-15/16 in |
Product Details
| Drilling Capacity Mild Steel | 1-1/4 |
| Motor Voltage | 230 V |
| Motor | 2 HP, 230V only, 3 Ph, 2 Speed |
| Phase | 3 |
| Manufacturers Part Number | JT9-354020 |
| Motor Horsepower | 2 HP |
| Spindle Taper | MT-3 |
| Quill Feed | Manual |
| Brand | JET |
| Drilling Capacity Cast Iron | 1-1/2 |
| Number of Spindle Speeds | 12 |
| Work Table Weight Capacity | 275 lbs |
| Style | Geared Head |
| Range of Spindle Speeds | Low - 60, 130, 230, 450, 800, 1500; High 120, 260, 460, 900, 1600, 3000 rpm |
