JohnDow 120 lb. Grease System - JDL-16
Model #: WBB592215
MPN #: JDL-16
JohnDow 120 lb. Grease System- JDL-16

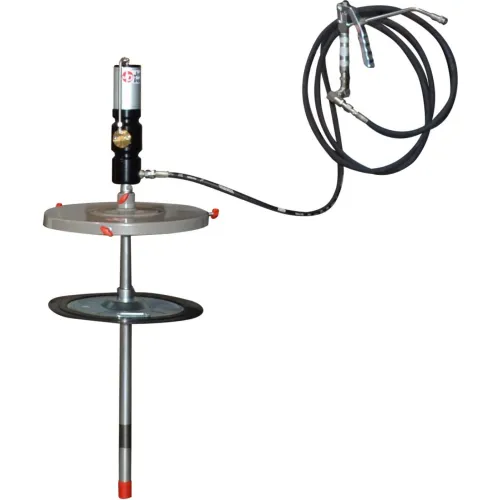

This John Dow air-operated grease delivery system is a complete fluid transfer pump designed for 120 lb. grease containers. The grease system includes all required equipment for efficiently transferring grease. This 50:1 ratio high-pressure system includes a pump, drum cover, follower plate, 8 ft. rubber outlet hose, and a Z-swivel for ease-of use. Enjoy the benefits of long-term use provided by the non-corrosive design of a John Dow air-operated grease delivery system.
This John Dow air-operated grease delivery system is a complete fluid transfer pump designed for 120 lb. grease containers. The grease system includes all required equipment for efficiently transferring grease. This 50:1 ratio high-pressure system includes a pump, drum cover, follower plate, 8 ft. rubber outlet hose, and a Z-swivel for ease-of use. Enjoy the benefits of long-term use provided by the non-corrosive design of a John Dow air-operated grease delivery system.
Specifications(1)
Features :
- Heavy-duty control handle
- Air inlet pressure of 70 to 115 psi
- Air inlet connection is 1/4 in. NPT (female)
- Air motor effective diameter is 2.40 in. (63mm)
- Max pressure of 5,600 psi
-
Max pressure of 5,600 psiOutlet connection is 1/4 in. NPT (male)
Weights & Dimensions
Hose Diameter 1/4 in Hose Length 10 ft Product Details
Type 120 Lb. Material Steel Description Grease System Manufacturers Part Number JDL-16 Pump Type Air/Hydraulic Brand John Dow Industries
