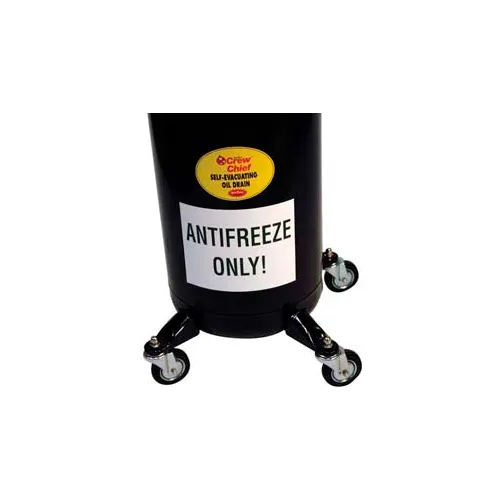

JohnDow 25-Gallon Heavy-Duty Self-Evacuating Antifreeze Drain - JDI-25HDC-EA
Model #: WBB592249
MPN #: JDI-25HDC-EA
25-Gallon Hd Self-Evacuating A/F Drain
Features:
Features:
- "Auto-Check Technology" eliminates oil shower risk and makes emptying automatic
- 25-Gallon capacity steel tank
- Green and white decal easily identifies this drain for collection of antifreeze
- 16" deep-drawn, offset steel funnel with expanded metal screen
- 360 degree swivel base on funnel makes positioning easy
- Height adjustment from 50" to 70"
- Molded tray for convenient tool storage
- Heavy-duty 4" swivel caster provide stability and mobility
- 6' quick-disconnect discharge hose can be permanently attached to a storage tank.
- Built-in sight tube shows fluid level
Weights & Dimensions
| Wheel Size | 3 |
| Hose Diameter | 3/4 in |
| Hose Length | 8 ft |
Product Details
| Type | Self Evacuating |
| Evacuation Method | Air Pressurized Evacuation |
| Capacity | 25 gal |
| Material | Steel |
| Operating Pressure | 10PSI |
| Description | Antifreeze Drain |
| Funnel Size | 16 |
| Manufacturers Part Number | JDI-25HDC-EA |
| PSI | 10 psi |
| Brand | John Dow Industries |
