JohnDow 120 lb. Grease System with Base - JDL-16C
Model #: WBB592216
MPN #: JDL-16C

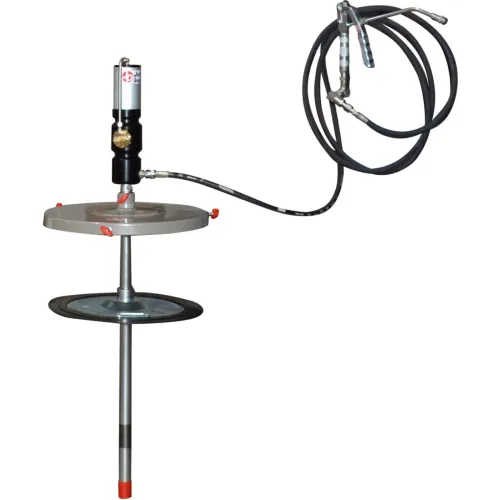

JohnDow 120 lb. Grease System with Base- JDL-16C
This John Dow air-operated grease delivery system is a complete fluid transfer pump designed for 120 lb. grease containers. The grease system includes all required equipment for efficiently transferring grease. This 50:1 ratio high-pressure system includes a pump, drum cover, follower plate, 8 ft. rubber outlet hose, a Z-swivel for ease-of use, and a castor base. Enjoy the benefits of long-term use provided by the non-corrosive design of a John Dow air-operated grease delivery system.
Features :
Heavy-duty control handleAir inlet pressure of 70 to 115 psiAir inlet connection is 1/4 in. NPT (female)Air motor effective diameter is 2.40 in. (63mm)Max pressure of 5,600 psi Outlet connection is 1/4 in. NPT (male)
This John Dow air-operated grease delivery system is a complete fluid transfer pump designed for 120 lb. grease containers. The grease system includes all required equipment for efficiently transferring grease. This 50:1 ratio high-pressure system includes a pump, drum cover, follower plate, 8 ft. rubber outlet hose, a Z-swivel for ease-of use, and a castor base. Enjoy the benefits of long-term use provided by the non-corrosive design of a John Dow air-operated grease delivery system.
Features :
Heavy-duty control handleAir inlet pressure of 70 to 115 psiAir inlet connection is 1/4 in. NPT (female)Air motor effective diameter is 2.40 in. (63mm)Max pressure of 5,600 psi Outlet connection is 1/4 in. NPT (male)
Weights & Dimensions
| Hose Diameter | 1/4 in |
| Hose Length | 10 ft |
Product Details
| Type | 120 Lb. |
| Material | Steel |
| Description | Grease System w/ Base |
| Manufacturers Part Number | JDL-16C |
| Pump Type | Air/Hydraulic |
| Brand | John Dow Industries |
