Kohler® 24 522 525 Short Block For Engine Models CV732-CV752
Model #: WBB3150690
MPN #: 24 522 525

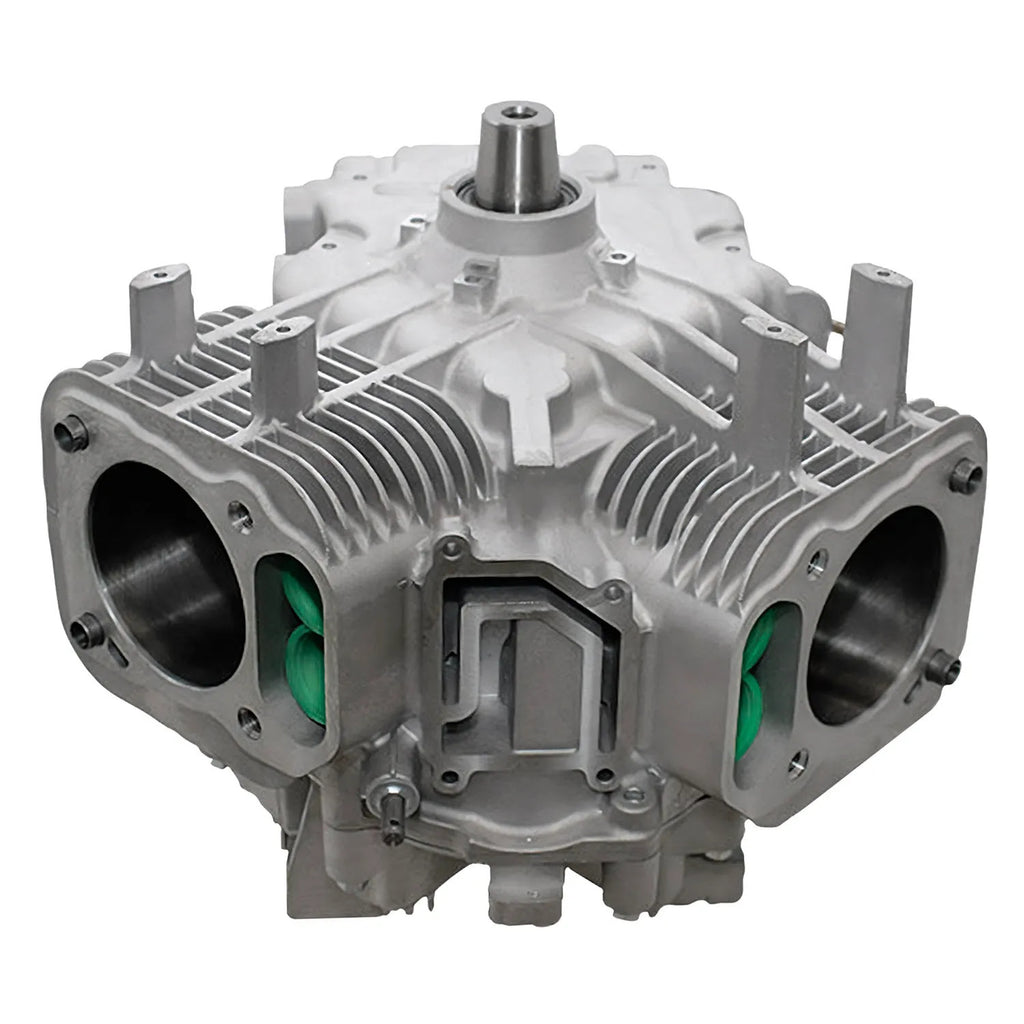

Short Block for Kohler® Engine Models CV732-CV752
You work your tail off 12+ hours a day. It's time to hold your engine to the same standard. With extended maintenance intervals and fuel-efficient operation, Kohler® Command PRO engines work as hard as you do.
Features:
- Integrated oil coolers extend oil-change intervals and maintain low temperatures during the entire power range
- High-efficiency, heavy-duty air filters provide protection from debris and ensure longer service intervals
- Extra-large sleeve bearings support heavy loads in commercial and industrial environments
- Commercial, 4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block
| Weight | 50 lbs |
| Shaft Size | 3-5/16 in |
Product Details
| Horsepower | 23-1/2 |
| Shaft Type | Vertical |
| Color | Silver |
| Max HP/RPM | 23-1/2/2800 |
| Cycles | 4 |
| Start Type | Electric |
| Governor System | Centrifugal |
| Oil Capacity | 64 |
| Material | Metal |
| Displacement | 45.6 in³ |
| Fuel Type | Gasoline |
| Number of Cylinders | 2 |
| Engine Type | 4-Stroke OHV V-Twin Cylinder |
| Ignition System | Electronic |
| Lube Type | Pressure |
| Brand | Kohler |
Warranty
| Warranty | Residential 2 Years, Commercial/Rental 90 Days |
Compliance & Certifications
| Emission Rating | EU Stage V, EPA Phase III, CARB Phase III, China Phase II |
