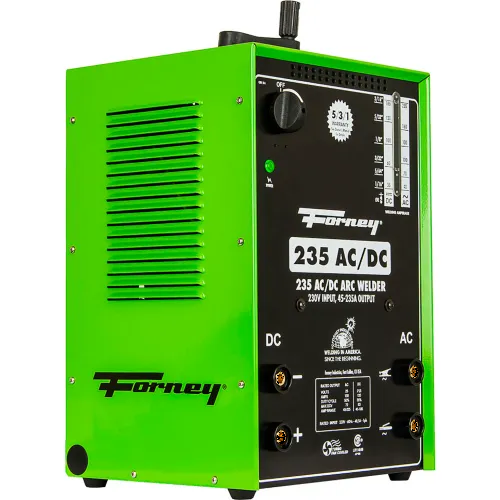

Forney 235 AC/DC Stick (SMAW) Welder - 45-235A - 230V - 5/32" Welding Capacity
Model #: WBB2298238
MPN #: 314
Ready to weld right out of the box, only handle assembly required. Dinse style connection provides easy polarity change and cable repairs. Features illuminated on/off switch and fan cooling system.
Specifications:
- Dimensions: 16.13 x 23-1/4" x 15-1/4"
- Weight: 116 lbs.
- AC/DC CC welding from 24-gauge to 1/2" thickness at 45 to 235 Amps
- Amerperage range: 45 to 235 Amps
- Duty cycle: 20% @ 235 Amp; 50% @ 150 Amp AC; 20% @ 180 Amp; and 35% @ 135 Amp DC
- High output of 200+ Amps
- Electrodes: 1/16" - 5/32"
- Warranty: protected under Forney's industry leading 5/3/1 warranty
Weights & Dimensions
| Cutting Capacity | 40 in |
Product Details
| Duty Cycle | 235A @ 20% |
| Voltage | 230 V |
| Description | Stick Welder |
| Single Pass Capacity | 5/32" |
| Manufacturers Part Number | 314 |
| Amperage | 235 A |
| Output | 45A - 235A BTU |
| Process | Stick |
| Brand | Forney |
Warranty
| Warranty | 5/3/1 |
