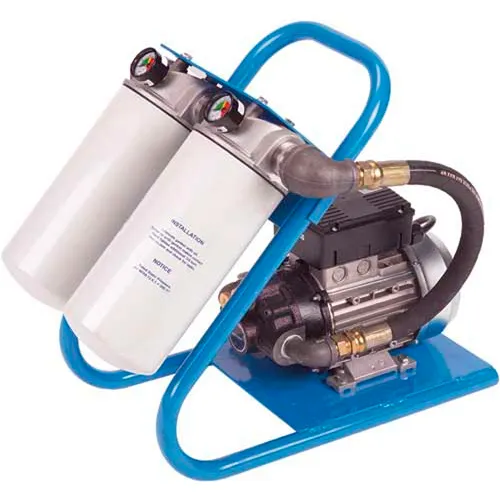

Liquidynamics 33273L-2 Absolute Filter Module W/Parallel Filters, Hand Carry
Model #: WBB652292
MPN #: 33273L-2
Absolute Filter Module W/Parallel Filters - Hand Carry
This small, compact hand carry module is ideal for use with light to medium viscosities such as hydraulic fluids and engine oils. Applications include kidney loop systems, 55 gallon drums and other portable or temporary applications. Filters are plumbed in parallel for increased contaminant holding capacity and/or higher viscosity capability. This model uses two 11" spin-on filter elements, choice of 3, 5, 10 or 20 micron elements, plumbed in series with a 7 GPM pump. Pump inlet is protected with a 20 mesh `Y' strainer and has 3/4" NPTF suction/discharge. Pump discharge/bypass pressure is adjustable to 80 PSI, 1.5 HP Motor, 115 VAC, 13 amp. U/L Listed.
This small, compact hand carry module is ideal for use with light to medium viscosities such as hydraulic fluids and engine oils. Applications include kidney loop systems, 55 gallon drums and other portable or temporary applications. Filters are plumbed in parallel for increased contaminant holding capacity and/or higher viscosity capability. This model uses two 11" spin-on filter elements, choice of 3, 5, 10 or 20 micron elements, plumbed in series with a 7 GPM pump. Pump inlet is protected with a 20 mesh `Y' strainer and has 3/4" NPTF suction/discharge. Pump discharge/bypass pressure is adjustable to 80 PSI, 1.5 HP Motor, 115 VAC, 13 amp. U/L Listed.
Weights & Dimensions
| Width | 16 in |
| Depth | 22 in |
| Height | 20 in |
| Weight | 72 lbs |
| Cord Length | 6' |
Product Details
| Assembly Required | No |
| Type | Parallel Filters |
| Horsepower | 1.6 |
| Color | Blue |
| For Use With | Lubricants |
| Gallons per Minute | 7 gal/min |
| Capacity | 55 gal |
| Filtration | 10 mic |
| Power Cord | 6' |
| Material | Steel |
| Description | Hand Carry Absolute Filter Module |
| Manufacturers Part Number | 33273L-2 |
| Brand | Liquidynamics |
