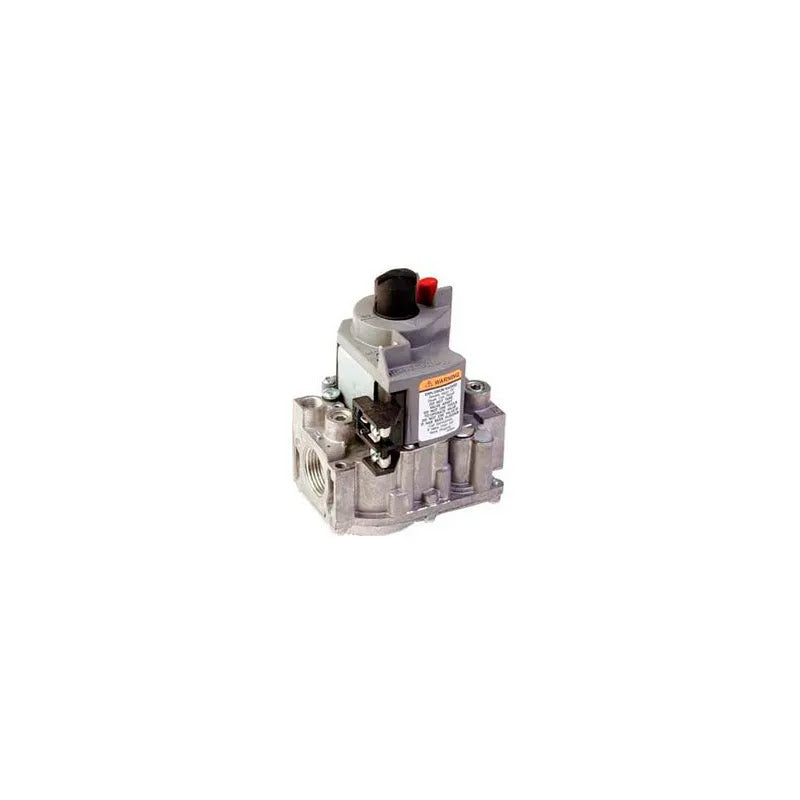

Honeywell Dual Standing Pilot Gas Valve VR8300C4506, W/ 3/4"X3/4" Step 35" Wc 09" Wc
Model #: WBB393702
MPN #: VR8300C4506
3/4" x 3/4" 24V Step Open Gas Valve
Combination gas control for use in 24 VAC, gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.
- Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment.
- Compact size.
- Provide two automatic valves.
- Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
- Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
- Meets codes requiring dual safety shutoff.
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
- All adjustments, wiring connections and pilot outlet are accessible from top of control.
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
- Compatible with ECO connector.
- LITE-RITE (OFF-PILOT-ON) lighting sequence.
Weights & Dimensions
| Width | 4-1/16 in |
| Depth | 2-11/16 in |
| Height | 5-3/8 in |
| Weight | 3 lbs |
| Outlet Size | 3/4 in |
| Inlet Size | 3/4 in |
Product Details
| Type | Straight Through w/ Integral Tapping and Flange |
| Opening Type | Step |
| For Use With | Gas-fired/Intermittent Pilot Appliances |
| BTU/hr Max | 200000 |
| BTU/hr Min | 30000 |
| Ignition Type | Standing Pilot |
| Description | Dual Standing Pilot Gas Valve |
| Max Operating Pressure | 1/2 psi |
| Manufacturers Part Number | VR8300C4506 |
| Fuel Type | Natural Gas |
| Brand | Honeywell |
