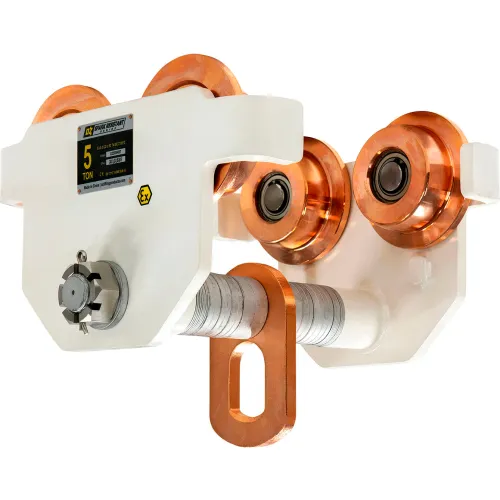

OZ Lifting Products Spark Resistant Push Beam Trolley, 5 Ton Capacity
Model #: WBB3143612
MPN #: OZSR5PBT
Potentially explosive atmospheres exist in many areas of industry. Explosive zones carry extremely strict guidelines and equipment requirements. OZ Lifting Products' Spark Resistant Push Beam Trolleys are manufactured in compliance with the EU's explosion-proof standard ATEX94/9/EC and the Machinery Directive 2006/42/EC. The explosion-proof level can reach: EX II2 GD c IIIC T135°C. They are suitable for potentially explosive atmospheres including Zone 1 & 2 (gas) as well as Zone 21 & 22 (dust).
Features:
- Anti-spark coating
- Copper plated trolley wheels and lifting bale
- Copper riveted ID Tags
- Fits to most I, S, and W-Beams
- Precision ball bearing trolley wheels
- Anti-drop plate
- Individual test certificate and serial number
- Type EX–GCT Spark Resistant Equipped with anti-spark coating, suitable for potential explosive atmospheres
- Standards – CE, ATEX–94/9/EC (Ex II 2 GD c IIC T4 IIIC T135°C), AS1418.2, ASME B30.11, ASME B30.16 (for use with manual or powered hoists
Weights & Dimensions
| Length | 18 in |
| Width | 14-13/16 in |
| Height | 13-7/8 in |
| Weight Capacity | 10000 lbs |
| Weight | 95 lbs |
| Max Flange Thickness | 1-5/8 in |
| Wheel Diameter | 4-21/64 in |
| Head Room | 7-23/32 in |
| Beam Width | 4-1/2 to 12 in |
| Flange Width | 4-1/2 to 12 in |
| Min Radius Curve | 4-9/16 |
Product Details
| Assembly Required | No |
| Type | Push Beam Trolley |
| Color | White |
| Series | Spark Resistant |
| Material | Steel, Copper |
| Operation | Manual |
| Package Quantity | 1 |
| Manufacturers Part Number | OZSR5PBT |
| Brand | OZ Lifting Products |
Warranty
| Warranty | 1 yr |
