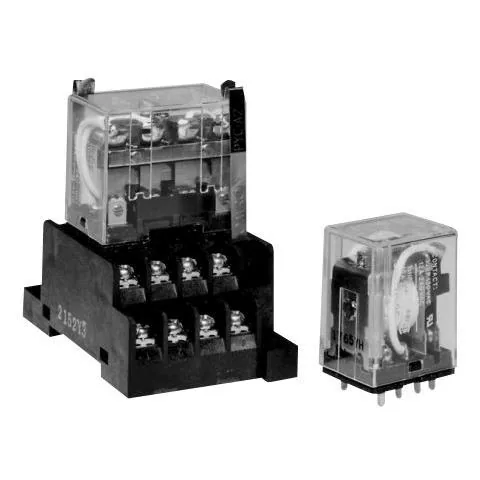

General Purpose Relays PLUG-IN DPDT 12VDC
LY2-DC12
Manufacturer:
Omron Automation and Safety
Mfr Part:
LY2DC12
Datasheet
| Description | Product Attribute |
Similar
|
|---|---|---|
| Manufacturer | Omron | |
| Product Category | ||
| Product | Power Relays | |
| Type | Standard | |
| Coil Voltage | 12 VDC | |
| Relay Contact Form | 2 Form C (DPDT-NO, NC) | |
| Contact Current Rating | 10 A | |
| Contact Termination | Plug In | |
| Mounting Style | Panel Mount | |
| Switching Voltage | 250 VAC, 125 VDC | |
| Coil Termination | Plug In | |
| Coil Type | Non-Latching | |
| Coil Resistance | 160 Ohms | |
| Coil Current | 75 mA | |
| Contact Material | Silver Alloy (Ag) | |
| Series | LY | |
| Length | 28 mm | |
| Width | 21.5 mm | |
| Height | 36 mm | |
| Packaging | Bulk | |
| Power Consumption | 900 mW | |
| Product Type | General Purpose Relays | |
| Subcategory | Relays | |
| Part # Aliases | LY2DC12NC 1340935 LY2 12VDC LY212VDC LY2DC12 |
Export and Environmental Classification
| Attribute | Description |
|---|---|
| Country of Origin | Indonesia |
| ECCN | EAR99 |
| HTS | 8536410050 |
| TARIC | 8536419089 |
| RoHS Compliant |
Yes
RoHS Compliant
|
| RoHS Exemption Number | N/A |
| Lead(PB) in Terminals |
No
Lead Free
|
| REACH SVHC | No |
| REACH Substance Name | N/A |
