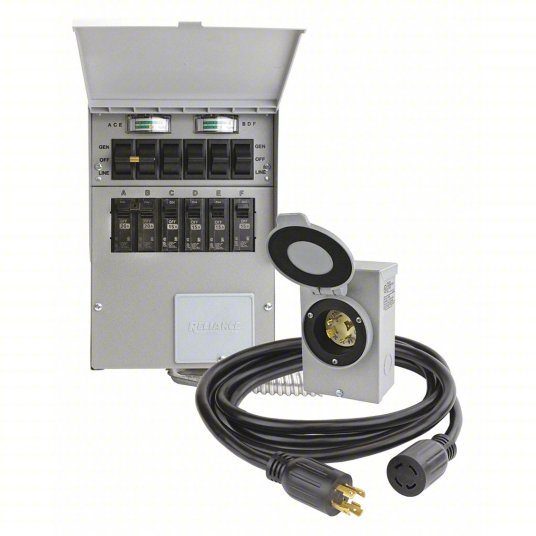

RELIANCE Manual Transfer Switch: Single Phase, 125/250V AC, 30 A Current Rating, 0 Spaces, Prewired
Manual transfer switches have a main toggle for engaging generator power and prewired circuits to ease installation and ensure compatibility between components.
Item 422L79
Mfr. Model 306CRK
Brand
RELIANCE
RELIANCE
Manufacturer Part Number
306CRK
306CRK
Phase
Single
Single
Rated Voltage
125/250V AC
125/250V AC
Current Rating
30 A
30 A
Number of Spaces
0
0
NEMA Enclosure Rating
1
1
Includes
- (6)/(10) Circuit Pro Tran® 2 Manual Transfer Switch
- 10 ft - 30A - 125/250VAC Outdoor Rated Generator Power Cord and Wire Connectors
- 306C Indoor Transfer Switch
- 30A - 125/250VAC Power Inlet Box
- PB30 Outdoor Power Inlet Box
- PC3010 10 ft Outdoor Power Cord
Overall Height
11-1/4 in
11-1/4 in
Overall Width
7-3/4 in
7-3/4 in
Overall Depth
4-3/4 in
4-3/4 in
Color
Gray
Gray
Enclosure Material
Metal
Metal
Manufacturer Warranty
5 yr
5 yr
Maximum Number of Tandem Breakers
3
3
Maximum Wattage
7,500 W
7,500 W
Maximum Wire Size
10 AWG
10 AWG
Mounting Type
Surface
Surface
NEMA Connector
L14-30
L14-30
Number of Circuits
6
6
Prewired
Yes
Yes
Standards
cULus Listed
cULus Listed
UNSPSC
39121501
39121501
Country of Origin
USA (subject to change)
USA (subject to change)
