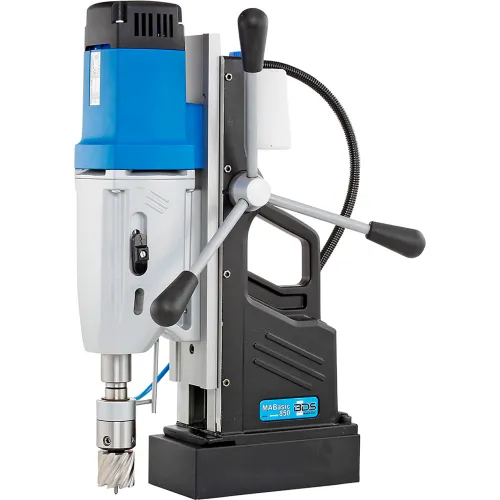

CS Unitec Magnetic Drill, Up to 3-1/16" Dia. Hole Capacity, 2-3/8 HP, 110V
Model #: WBB3216050
MPN #: MABasic 850
CS Unitec's MABasic line of magnetic drills consists of powerful and reliable machines at an affordable price, a perfect blend of power, endurance and economy. The MABasic 850 is a professional-grade portable magnetic drill designed for continuous use with: 16 Amp, double-insulated motor, 4-speed gearbox (110, 175, 245, 385 RPM), a 10" stroke, and a Morse Taper 3 spindle for easy changeover to different cutting tools.
Powerful and portable, this drill cuts holes up to 3-1/16" dia. with annular cutters. The drill's MT3 design, coupled with the included 3/4" geared chuck, easily converts the MABasic 850 to a standard drill press for conventional twist drilling up to 1-1/4" diameter.
The MABasic 850 is equipped with an internal lubrication system that increases the life of annular cutters by reducing friction and wear. The machine's magnet has a holding strength of 6000 lbs.
Features:
Powerful and portable, this drill cuts holes up to 3-1/16" dia. with annular cutters. The drill's MT3 design, coupled with the included 3/4" geared chuck, easily converts the MABasic 850 to a standard drill press for conventional twist drilling up to 1-1/4" diameter.
The MABasic 850 is equipped with an internal lubrication system that increases the life of annular cutters by reducing friction and wear. The machine's magnet has a holding strength of 6000 lbs.
Features:
- 4-gear, high-speed, powerful motor for demanding jobs
- 3/4" direct arbor with automatic cooling
- Simple, ergonomic arrangement of controls for one-handed operation
- 1 Magnetic drilling machine
- 1-1/2" chuck
- 1 Pilot pin
- 1 Carrying case
- It also includes safety strap, carabin hook, allen keys, operating manual and warranty certificate
| Length | 11-5/8 |
| Width | 8-1/4 in |
| Height | 19-3/8 in |
| Weight | 53 lbs |
| Size | 11-5/8 x 8-1/4 x 19-3/8 in |
| Column Diameter | 3-1/16 in |
| Base Work Table | 1 in |
| Base Dimensions | 8-5/8 x 4-1/3 in |
Product Details
| RPM | 110 / 175 / 245 / 385 rpm |
| Type | Magnetic Drill |
| Drilling Capacity Cast Iron | 3-1/16 |
| Drilling Capacity Mild Steel | 3-1/16 |
| Style | Portable |
| Motor Voltage | 110 V |
| Phase | 1 |
| Manufacturers Part Number | MABasic 850 |
| Motor Horsepower | 2-3/8 HP |
| Spindle Taper | MT3 |
| Brand | CS Unitec |
