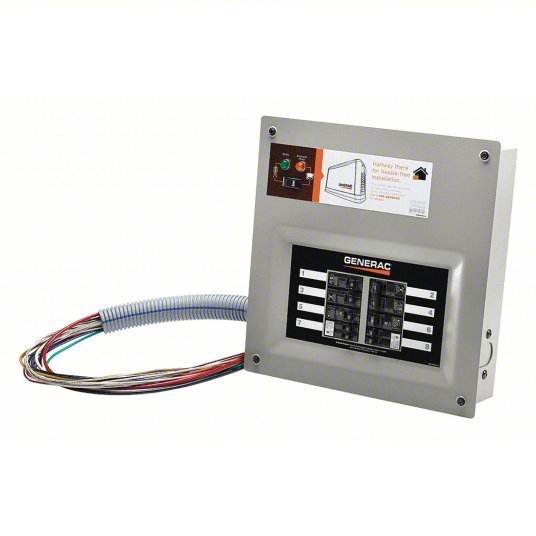

GENERAC Upgradable Manual Transfer Switch: Single Phase, 120/240V AC, 50 A Current Rating, 16 Spaces
Manual transfer switches have a main toggle for engaging generator power and prewired circuits to ease installation and ensure compatibility between components.
Item 444N69
Mfr. Model 9854
Brand
GENERAC
GENERAC
Manufacturer Part Number
9854
9854
Phase
Single
Single
Rated Voltage
120/240V AC
120/240V AC
Current Rating
50 A
50 A
Number of Spaces
16
16
NEMA Enclosure Rating
1
1
Includes
- 12 in Pre-Wired Whip
- Install Manual, Wiring Harness, Conduit and Fittings
- Transfer Switch
Overall Height
15-13/16 in
15-13/16 in
Overall Width
15-3/8 in
15-3/8 in
Overall Depth
4 in
4 in
Breakers Included
(2) 20 A 1P; 20 A 2P; 30 A 2P
(2) 20 A 1P; 20 A 2P; 30 A 2P
Color
Gray
Gray
Compatible with Brand
Generac
Generac
Compatible with Manufacturer Model NumberGP15000E; GP17500E; XG10000E; XP10000E
Enclosure Material
Aluminum
Aluminum
Ground Bar Kit
Mfr. No. 0K9607
Mfr. No. 0K9607
Includes Power Indicator Lights
Yes
Yes
Manufacturer Warranty
5 yr Limited
5 yr Limited
Maximum Number of Tandem Breakers
2
2
Maximum Wattage
11 kW
11 kW
Mounting Type
Flush/Wall
Flush/Wall
NEMA Connector
Non-NEMA (CS6377)
Non-NEMA (CS6377)
Number of Circuits
16
16
Prewired
Yes
Yes
Required Main Breaker
50 A
50 A
Standards
cETLus
cETLus
UNSPSC
39121521
39121521
Country of Origin
USA
USA
